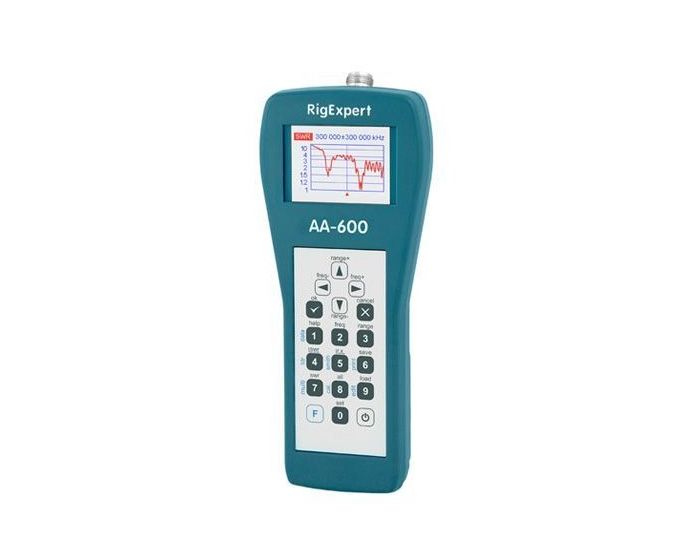

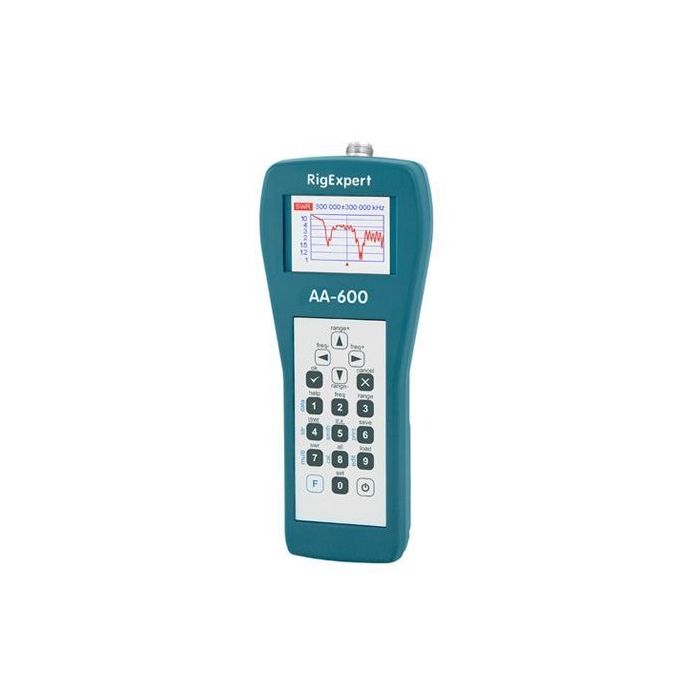

RigExpert AA-600

RigExpert AA-600 is a powerful antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feedlines.

Graphical SWR (Standing Wave Ratio) and impedance, as well as Smith/polar chart displays are key features of these analyzers which significantly reduce the time required to adjust an antenna.

Easy-to use measurement modes, as well as additional features such as connection to a personal computer make RigExpert AA-600, AA-1000 and AA-1400 attractive for professionals and hobbyists.

The following tasks are easily accomplished by using these analyzers:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Antenna SWR and impedance measurement and comparison before and after specific event (rain, hurricane, etc.)
  • Making coaxial lines or measuring their parameters
  • Cable testing and fault location
  • Measuring capacitance or inductance of reactive loads

The following tasks are easily accomplished by using the RigExpert AA-600 analyzer:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Antenna SWR and impedance measurement and comparison before and after specific event (rain, hurricane, etc.)
  • Making coaxial lines or measuring their parameters
  • Cable testing and fault location
  • Measuring capacitance or inductance of reactive loads

Frequency range: 0.1 to 600 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical mode,
1 to 10 in graph mode

SWR display: numerical or easily-readable bar

R and X range: 0…10000, -10000…10000 in numerical mode,
0…1000, -1000…1000 in graph mode

Display modes:
– SWR at single or multiple frequencies
– SWR, return loss, R, X, Z, L, C at single frequency
– SWR graph, 80 points
– R, X graph, 80 points
– Smith (or polar) chart, 80 points
– TDR (Time Domain Reflectometer) graph

Optional open-short-load calibration in SWR, R,X or Smith/polar chart graph modes.

RF output:
– Connector type: N
– Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
– Output power: -10 dBm (at 50 Ohm load)

Power:
– Three 1.5V, alcaline batteries, type AA *
– Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
– Max. 3 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
– 320×240 color TFT displaty
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens
– USB connection to a personal computer

Dimensions: 23x10x5.5 cm (9x4x2”)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 650g (23 Oz)

Warranty: 2 years

GTIN-13: 4820185420037

RigExpert AA-600 is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.

RigExpert AA-600
Soft case with straps
Battery charger
USB cable
N-to-UHF adapter
User’s manual
