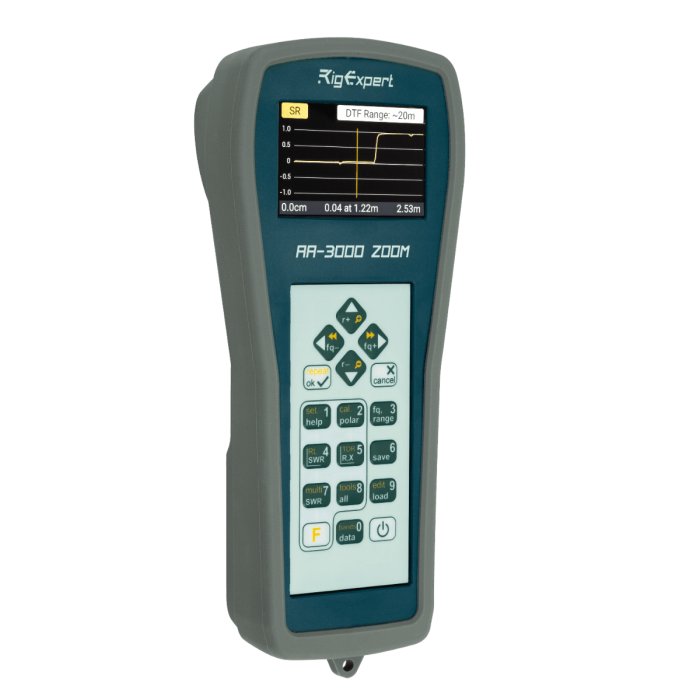

Rig Expert AA-3000 Antenna Analyzer

SKU
ZRE-AA-3000
$1,195.95
Add to Wish List
More on the way

This item is not currently in stock. We are not accepting backorders at this time.

RigExpert® AA-3000 ZOOM Powerful Antenna and Cable analyzer up to 3 GHz with Big Blanview® Display

The RigExpert AA-3000 Zoom is equipped with a spacious Blanview® display, ensuring excellent visibility in sunlight while maintaining low power consumption. Its high contrast display doesn't compromise accuracy, eliminating the need for frequent recalibration. The multilingual interface and built-in helper function enhance user-friendliness, making operation seamless.

For power flexibility, the RigExpert AA-3000 supports up to three alkaline or rechargeable batteries within a voltage range of 1.2V to 3.7V. This adaptability allows users to choose batteries based on preference or availability. Moreover, the inclusion of OSL calibration data memory facilitates quick selection of different measurement fixtures, catering to diverse measurement needs with ease. Overall, this product prioritizes user convenience, display quality, and adaptability to different operational scenarios.

Purchase your RigExpert AA-3000 Zoom from GigaParts today.

RigExpert® AA-3000 ZOOM
Powerful Antenna and Cable analyzer up to 3 GHz with Big Blanview® Display


Applications
• Amateur radio
• Professional radio
• Commercial radio
• Telecom
Use cases
• Checking and adjusting antennas
• Сable Length and Velocity Factor measurements
• 1/4-λ, 1/2-λ and other coaxial stubs setup
• Finding cable fault
• Measurement of parameters of other RF elements
- Capacitors and inductors
- Transformers
- Traps
Main Features
• Bіg sunlight readable Blanview® display
• High contrast with Low Power Consumption
• Consistency and accuracy without prior recalibration
• Multilingual user friendly interface
• Built-in Helper at the push of a button
• Up to three alkaline or rechargeable batteries with voltage from 1.2V to 3.7V
• OSL calibration data memory to select different measurement fixtures quickly

Frequency range

  • 0.1 to 3000 MHz
Frequency entry
  • 1 kHz
Measurement for systems
  • 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
  • 1 to 10 in chart modes
  • 1 to 100 in numerical modes
R and X range
  • 0…2000, -2000…2000
Display modes
  • Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé)
  • Optional open-short-load calibration
  • R, X chart
  • Return loss chart
  • Smith chart
  • SWR at single or multiple frequencies
  • SWR chart
  • SWR, return loss, R, X, Z, L, C at single frequency
  • TDR chart (Time Domain Reflectometer)
  • User OSL: 10 profiles available
RF output
  • Connector type: N
  • Output power: -10 dBm (at a load of 50 ohms)
  • Output signal shape: square
Power
  • Max. 5 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
  • Three 1.2V Ni-MH batteries, type AA
  • Three 3.7V LiPo batteries, 14200
  • When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
  • 6x3 keys on the water-proof keypad
  • 800×480 color Blanview® display
  • Bluetooth Specification v.4.2, LE
  • Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German
  • USB connection to a personal computer
Operating temperature
  • 0…40 °C (32…104 °F)
Weight
  • 442 g (15.6 oz)

Dimensions

  • 100 × 230 × 55 mm, (4 × 9 × 2 in)
