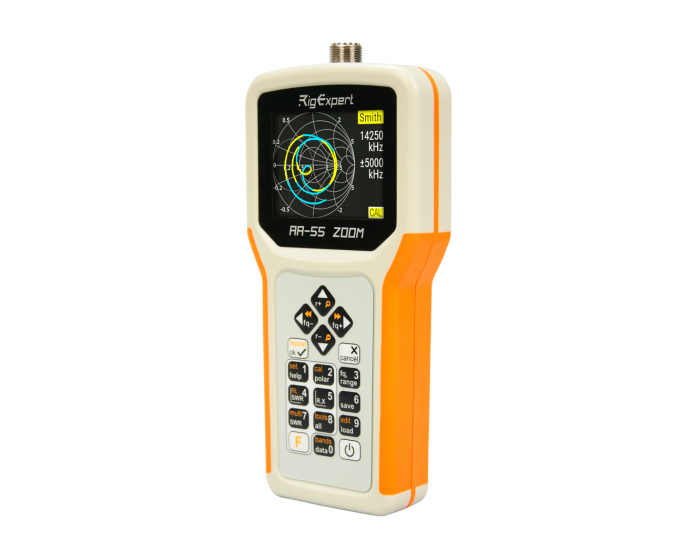

RigExpert AA-55 ZOOM

Take the Mystery Out of Your Antenna with the RigExpert AA-55 Antenna Analyzer

Ever wonder why your antenna isn't performing its best? Are you struggling with signal issues and frustrated with unclear reception? The RigExpert AA-55 Antenna Analyzer is the ultimate troubleshooting tool to unlock the secrets of your antenna system.

Here's why the RigExpert AA-55 is a game-changer for any ham radio operator:

Unmask Antenna Problems: The AA-55 measures a wide range of antenna parameters, including SWR (Standing Wave Ratio), reactance, return loss, and cable loss. This in-depth analysis helps you pinpoint exactly where issues might be lurking in your antenna or cable setup.
Tune for Peak Performance: Fine-tune your antenna for optimal performance across a wide frequency range (60 kHz to 55 MHz). The AA-55's graphical displays, including the Smith Chart and SWR plots, make it easy to visualize antenna characteristics and achieve the perfect resonance point.
Become an Antenna Guru: No more guesswork! The AA-55 empowers you to understand your antenna system better than ever before. This knowledge lets you troubleshoot problems quickly, optimize antenna performance, and even build your own antennas with confidence.
Portable Powerhouse: The AA-55 is compact and lightweight, making it the perfect companion for field use. Take it with you to the remote operating location and ensure your antenna is ready to deliver top-notch performance wherever you go.
User-Friendly Interface: Don't be intimidated by complex equipment. The AA-55 features a clear and intuitive interface, making it easy to navigate for both experienced hams and newcomers alike.

The RigExpert AA-55 Antenna Analyzer is an investment in clear communication and peak antenna performance. Stop struggling with signal issues and take control of your antenna system. Order your AA-55 today and unlock the full potential of your radio setup!

Purchase your RigExpert AA-55 ZOOM Non Bluetooth from GigaParts today.

The following tasks are easily accomplished by using this analyzer:
Rapid check-out of an antenna
Tuning an antenna to resonance
Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
Making coaxial stubs or measuring their parameters
Cable testing and fault location, measuring cable loss and characteristic impedance
Measuring capacitance or inductance of reactive loads
The following tasks are easily accomplished by using this analyzer:
Rapid check-out of an antenna
Tuning an antenna to resonance
Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
Making coaxial stubs or measuring their parameters
Cable testing and fault location, measuring cable loss and characteristic impedance
Measuring capacitance or inductance of reactive loads

Frequency range:	0.06 to 55 MHz
Frequency entry:	1 Hz resolution
Measurement:	25, 50, 75 and 100-Ohm systems
SWR measurement range:	1 to 100 in numerical modes, 1 to 10 in chart modes
SWR display:	numerical or analog indicator
R and X range:	R and X range: 0…10000, -10000…10000 in numerical modes, 0…1000, -1000…1000 in chart modes

Display modes:
SWR at single or multiple frequencies
SWR, return loss, R, X, Z, L, C and phase angle at single frequency
SWR chart, 100 points
R, X chart, 100 points
Smith chart, 100 points
Return loss chart, 100 points
Cable tools (loss and characteristic impedance)

Optional open-short-load calibration.

Non Volatile memory:

10 slots to save measurement results

RF output:

Connector type: UHF (SO-239)
Output signal shape: square, 0.06 to 55 MHz
Output power: +13 dBm (at 50 Ohm load)

Power:

Two 1.5V alkaline batteries, type AA
Two 1.2V Ni-MH batteries, type AA *
Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:

320×240 color TFT display
6×3 keys on the water-proof keypad
Multilingual menus and help screens
USB connection to a personal computer

Dimensions: 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 310 g (10.9 Oz) w/o batteries

Warranty: 2 years

GTIN-13: 4820185420099

RigExpert AA-55 ZOOM is made in Ukraine.

**Specifications are subject to change without notice.**

RigExpert AA-55 ZOOM Non Bluetooth
Soft case
USB cable
User’s manual
Software manual
Alkaline batteries
