RigExpert Stick 230 100kHz - 230MHz Analyzer

SKU
ZRE-AA-STICK
Rating:
100 % of 100
$299.95
Used & Open-Box: from $299.29
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

RigExpert Stick 60kHz - 35MHz Analyzer | State-of-the-Art Antenna & Cable Analyzer

Key Features:

  • Frequency range: 0.06 to 35 MHz, upgradable up to 230 MHz via key-code
  • Easy to read in direct sunlight
  • SO-239 connector
  • 2800 mAh Li-ion rechargeable battery
  • Measurements up to 30% faster than other models
  • Immediate scan when powered on with DiagnoStick (TM) feature
  • Star *** rating of your antenna
  • iOS & Android friendly thanks to built-in bluetooth
  • USB type C data/charge port
More info to be released as it becomes available!

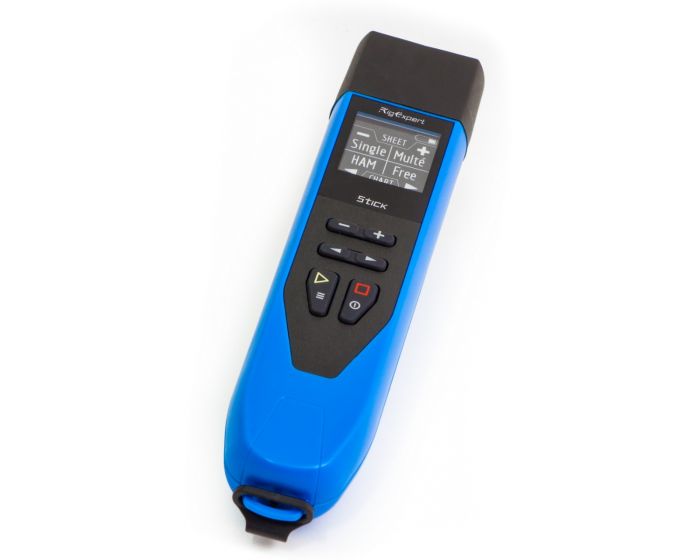

RigExpert Stick 230

Small. Handy. Powerful.

The analyzer is designed for measuring SWR (standing wave ratio), return loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 230 MHz.

The following tasks are easily accomplished by using this analyzer:

  • Rapid check-out of an antenna in the field or stationary conditions.
  • Tuning an antenna to resonance.
  • Comparing characteristics of an antenna before and after a specific event (rain, hurricane, etc.).
  • Measuring capacitance or inductance of reactive loads.

Warranty coverage by the RigExpertCare™

Frequency range: 0.1 to 230 MHz
Frequency entry: 1 KHz resolution
Measurement for 25, 50, 75, 100, 150, 200, 300, 450, and 600-Ohm systems
SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
R and X range: 0…10000, -10000…10000

Display Modes:

  • SWR, return loss, R, X, Z, L, C, Magnitude and Phase Angle at single frequency.
  • SWR chart, 100 points.
  • SWR chart at fixed HAM bands by IARU Regions, 100 points.
  • Multi mode – to check your multiband antenna promptly.

RF output:

  • Connector type: UHF (SO-239).
  • Output signal shape: square, 0.1 to 230 MHz.
  • Output power: -10 dBm (at 50 Ohm load).

Power:

  • One 3.7V Li-Ion battery, type 18650
  • When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:

  • 200×200 monochrome e-paper display
  • 2×3 keys on the water-proof keypad
  • English menus and help screens
  • USB connection to a personal computer

Bluetooth: v.4.2 BLE Single-mode, Class B
Dimensions: 185 mm x 40 mm x 33 mm (7,3 in x 1,6 in x 1,3 in)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 185 g (6,5 Oz) with battery
Warranty: 2 years
GTIN-13: 4820185420259

RigExpert Stick is made in Ukraine.

*All specifications are subject to change without notice or obligation.

  • RigExpert Stick 230 antenna analyzer (with a Li-ion battery type 18650)
  • Quick Start Guide
  • Neck strap
  • USB cable
