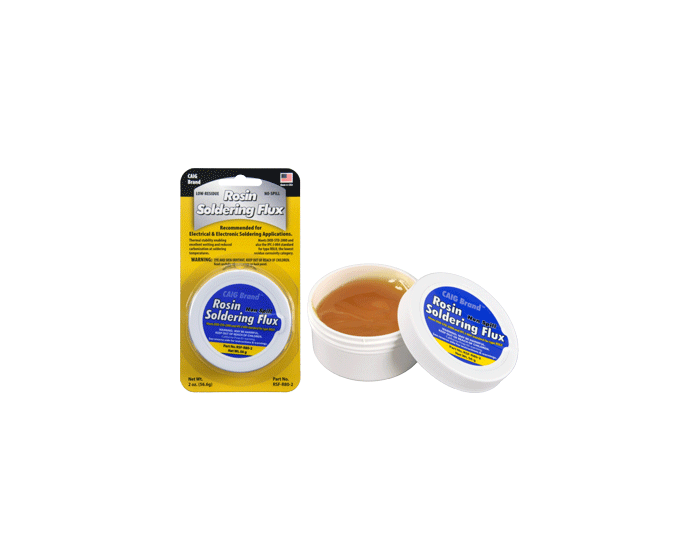

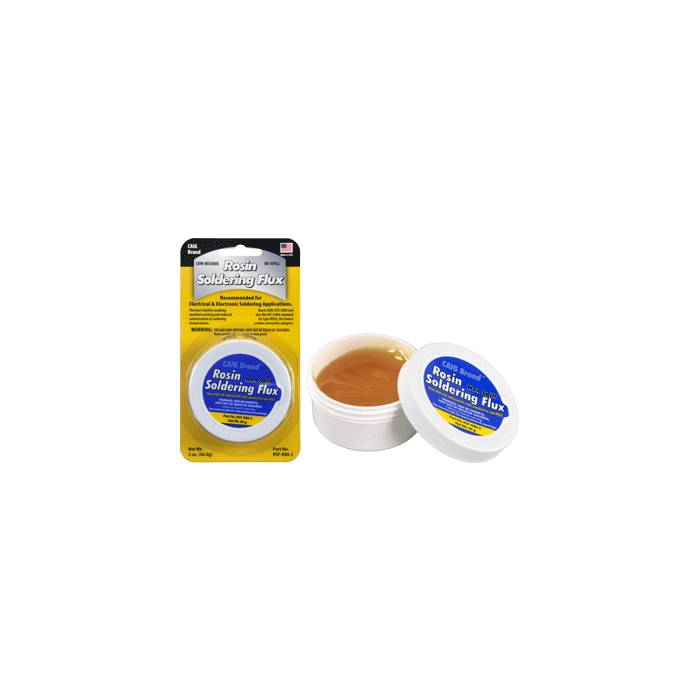

Caig DeoxIT Rosin Soldering Flux RSF-R80-2, 56g
SKU
PB0772
$8.95
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:
Must Have Accessories
DeoxIT Rosin Soldering Flux, 56g
General purpose flux for soldering electrical connections. Use CAIG NO-CLEAN Soldering Flux, TYPE RSF-R39 for precision soldering. See our other CAIG products HERE.
KEY FEATURES:
- RSF Rosin Flux is a mildly activated rosin flux that is considerably more active than water-white rosin
- Activity closely approaches that of fully activated rosins
- Conforms to all requirements of Type RMA
- Rosin Core, Mildly Activated of Federal Specification QQ-S-571
- The RSF paste ux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category
- Thermal stability enabling excellent wetting and reduced
- carbonization at soldering temperatures
*See more information in the Specifications Tab*
- Softening Point: 160 F (71 C)
- Rosin Grade: WW per Fed. Spec. LLL-R-626
- Acid No. (of Rosin): 150
- Water Extract Resisitivity: 110,000 ohm-cm
- Effect on Copper Mirror: None
- Fungus Resistance Per MIL-E-5272
- Nonflammable, noncorrosive.
