Tarheel Antennas 200A-HP PACKAGE SILV

$619.00
Tarheel Antennas 200A-HP PACKAGE SILV SKU: ZTH-200AHP-PK-S

$619.00

Free Shipping!

Reserve yours now!
(Ships In 7-14 Days)

Check Store Stock

Huntsville Store:

Las Vegas:

Tarheel Antennas 2001-HP Package (Silver) - Buy the Package and Save!!


  • Model 200A-HP Antenna
  • MT-1 Antenna Bracket
  • 6' Stainless Steel Whip
  • Whip Quick Twist Disconnect
  • 18' RG-8X Coax Assembly
  • 20' Control Cable
  • Manual Switch
  • Ferrite Decoupling Core
  • Matching Coil
  • Fuseholder & Fuse
  • 3/8-24-1 1/4" Stud
  • Coax Seal
  • Silicone Dielectric Compound

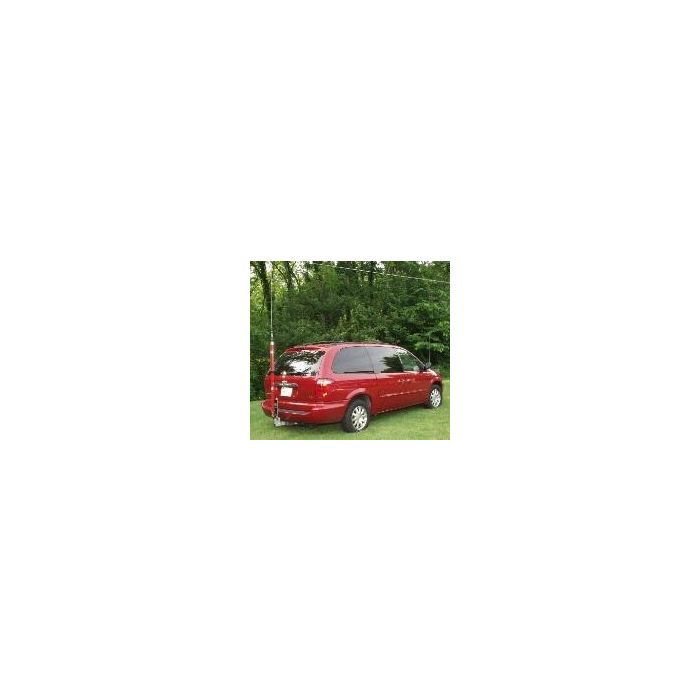

When properly installed on your vehicle the Model 200A-HP will provide continuous coverage from 3.4 to 28 MHz with the a 5' whip.




The Model 200A-HP like all the Tarheel Antennas is without a doubt the best built, the best looking, best performing, highest power rating motorized antenna for it's size and design on the market.




The Model 200A-HP has a longer lower mast to help keep the coil above the roof line when mounted low on the vehicle or when mounted on vehicle with high sides (Vans, Blazers, Excursions, Suburbans etc.). Plus, you gain a little performance on the lower bands.




All of our antennas come with the sensors already pre-installed so if you decide to add one of the auto controllers (Tarheel Simple Controller, Tarheel Programmable Controller, Turbo Tuner, Antenna BOSS and BOSS II, SDC-100 or the SDC-102) now or later everything is

ready.




What makes our antennas stand above the rest is all of our CNC machined components are either aircraft aluminum or stainless steel and blueprinted, meaning you can take 100 antennas apart and mix up the parts then reassemble them and they all work the same.




Our coil form is approximately 2" in diameter and made of fiberglass. The other antenna builders know fiberglass is better but they choose not to use it because of the expense and difficulty in machining.




We use 14 gauge wire for high power capability wound at eight turns an inch for maximum efficiency. The decoupler we use is CNC machined for tight tolerances with custom fingerstock designed to contact 3 turns of coil all the time with over 25 lbs. of combined contact

pressure.




With this design you can run up to 1.5 Kw P.E.P trouble free. It's so superior to anything else on the market that we put a lifetime warranty on it. Our antennas come with the Pittman 12 volt commercial grade gear motor for the best performance. It is very durable and

very quiet while receive tuning.




Our weather shield is made of LexanTM. This is the same stuff used on racecar windshields and even used to make bulletproof windows.




The Model 200A-HP comes in your choice of colors (black, white, red or silver), using the Dupont Imron 5000 system. And folks this is not spray paint in a can. With this you get a finish that looks as glossy and last as long as the paint on a new vehicle.




That's just some of the effort that goes into a Tarheel Antenna. You won't be disappointed, I GUARANTEE IT!




The antenna is a plug & play system. Included is the antenna. manual switch box, 20 ft. of control cable, ferrite decoupling core, base matching coil, 3/8-24 stud, connectors, fuseholder and fuse.





The warranty is simple: For the 1st 30 days if for any reason you are not completely satisfied, return the antenna for a full refund less the shipping charges. The antenna has a ONE YEAR NO MATTER WHAT WARRANTY to the original owner. If for any

reason (other than damage due to
