Times Microwave TK-600EZ LMR-600 Coax Cable Prep Kit

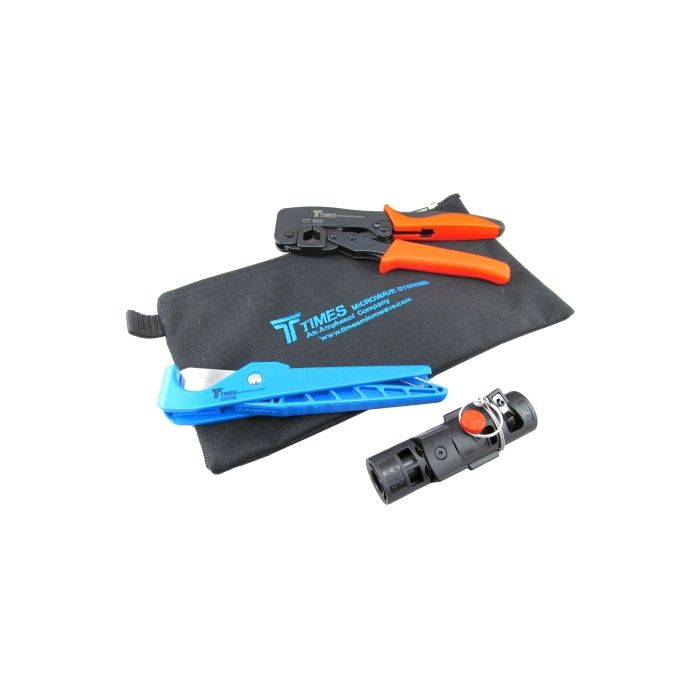

The TK-600EZ is a coaxial cable preparation kit designed specifically for the LMR-600 coaxial cable. This kit includes all the tools necessary to prepare the cable for the addition of connectors. Here are the steps to use the TK-600EZ kit for preparing LMR-600 coaxial cables:

1. Strip the outer jacket of the cable using the cable cutter included in the kit. Strip off approximately 1.5 inches of the outer jacket.
2. Using the coaxial cable stripper included in the kit, strip off the outer braid shielding to expose the dielectric insulation. The stripper is adjustable and can be set to the correct depth.
3. Trim the dielectric insulation to the correct length using the cable cutter included in the kit. The kit comes with a marking tool to help determine the correct length.
4. Strip off the inner conductor insulation using the coaxial cable stripper. The stripper is again adjustable to the correct depth.
5. Slide the prepared cable into the connector body.
6. Attach the connector to the cable using the crimping tool included in the kit.

By following these steps, the TK-600EZ kit can be used to prepare LMR-600 coaxial cables for adding connectors.
