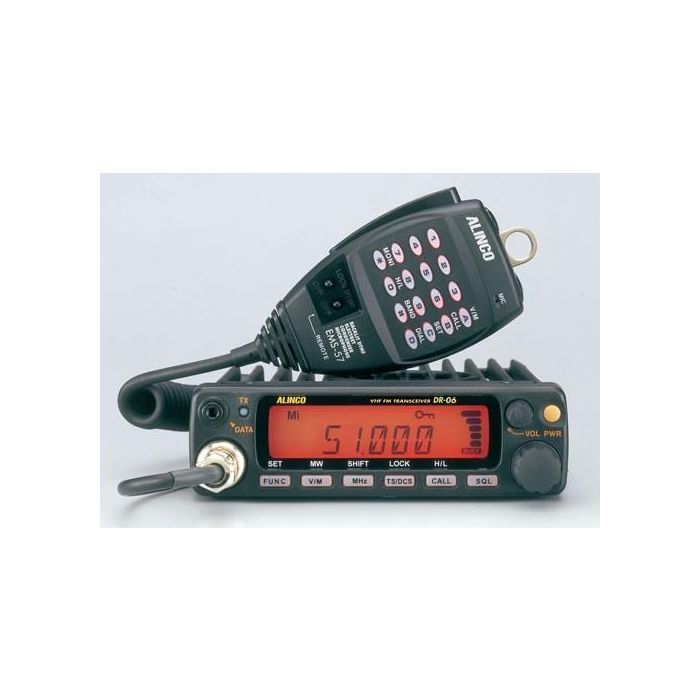

Used Alinco DR-06T SNM001845

$219.00
Used Alinco DR-06T SNM001845 SKU: ZUS-1839

$219.00

Free Shipping!

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

Used acceptable Alinco DR-06T SNM001845. The radio seems to be working fine however the tone pad on the mic does not seem to be working.The manual, stickers, and manual info is still present but the manual is dirty. There is some noticeable signs of use on the dial nobs. Everything it originally came with is in the box. Package is in good condition.

6m FM Mobile radio

Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.

    • Same key-operations as DR-135-435 series mobile radios.
    • EJ-41U internal TNC board is available as an option for 1200/9600bps packet (DR-06T only), no need to remove mic for packet operation.
    • DR-06T 50 watts, H(50W)/M(20W)/L(5W) power settings.
    • 100 memory channels.
    • Front panel data port (DR-06T only)
    • Rear panel DSUB9 computer connection (DR-06T only)
    • CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
    • Clean, clear Alinco audio
    • Super-wide 7 character alphanumeric display
    • Wide and narrow FM modes (16K0 & 8K50F3E / DR-03T is fixed for NFM)
    • Theft alarm feature
    • A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
    • Stays in mode you select (voice/packet) through power off cycles
    • Ten autodial memories

General:

Frequency range:

TX(T):

DR-06T: 50~53.995MHz

RX(T):

DR-06T: 40~69.995MHz

Operating mode

DR-06T/16K0F3E (FM)/8K50F3E (NFM)

F1(9600bps)/F2(1200bps)/10F3 optional with EJ-41U/EJ-47U on DR-06T

Channel steps                                    5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz

Memory channel                                100 channels + 1 quick recall (CALL)

Antenna impedance                          50ohm unbalanced

Frequency stability                             +/- 7ppm

Power supply requirement                13.8V DC +/- 15% negative ground

Current drain                                     DR-06T:Approx. 11.0A TX High

RX both models:                               Approx. 0.6A max

Usable temperature range                -10digC to +60digC (+14digF to 140digF)

Dimensions (w/o projection)            140(W) x 40(H) x 174(D) mm

                                                         5.59"(W) x 1.57"(H) x 6.85"(D)

Weight Approx.                                1.0Kg (35.3oz)

Transmitter

Power Output

DR-06T                                             Approx. 50W / 10W(HI)

Approx.                                             20W / 5W(MID)

Approx.                                             5W /2W(LOW)

Modulation system                           Variable reactance frequency modulation

Spurious emission                            Less than -40dB

Maximum frequency deviation         +/- 5 KHz (FM) / +/- 2.5 KHz (NFM)

Receiver

Receive system                                 Double-conversion superheterodyne

Sensitivity (-12dB SINAD)                 Less than -12.0dBu

Intermediate frequency                     1st IF 10.7MHz, 2nd IF 450 KHz

Selectivity                                          -6dB: +/-12KHz or more (FM)

-60dB: +/-28KHz or less

-6dB: +/-6KHz or more (NFM)

-60dB: +/-16KHz or less

Audio output power                           More than 2.0W(8ohm 10%THD)
