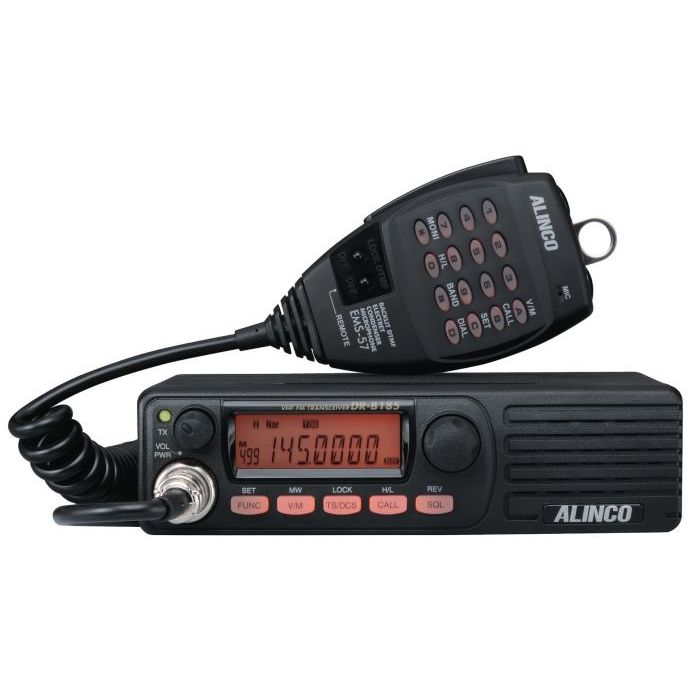

Used Alinco DR-B185HT 2M Mobile Transceiver 85W

Name: Used Alinco DR-B185HT 2M Mobile Transceiver 85W
Brand: Alinco
SKU: ZUS-1725
Price: 139 USD
Availability: OutOfStock

SKU: ZUS-1725

Availability:

Out of stock

No Longer Available

Description

Specifications

Genaral DR-B185HT/HE
Frequency coverage DR-B185HT DR-B185HE	TX:144.000 - 147.995MHz RX:136.000 - 173.995MHz TX/RX:144.000 - 145.995MHz
Operating mode	16k0F3E (FM/wide)/11k0F3E (FM/narrow)
Antenna impedance	50ohm unbalanced
Frequency stability	+/- 2.5ppm
Power supply requirement	13.8V DC +/- 15% (11.7 to 15.8V DC)
Ground method	Negative ground
Current drain	Receiver: 1.0A (max.) / Transmit: 20A
Operating temperature	-10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection)	164 x 44 x 183.6 mm 6.44 x 1.73 x 7.21 inches
Weight	1.5Kgs / 3.31lbs
Transmitter
Power Output	85W High / 5W Low
Modulation system	FM: Reactance modulation
Spurious emission	Less than -50dB
Unwanted sideband	More than 50dB(1KHz)
Maximum FM deviation	+/- 2.5 KHz
Receiver
Receive system	Double-conversion superheterodyne
Sensitivity	Wide: Less than 0.25uV, Narrow: Less than 0.25uV
Intermediate frequency	1st IF 45.1MHz, 2nd IF 450 KHz
Adjacent Channel Selectivity	Wide: More than 70dB, Narrow: More than 60dB
Spurious and image rejection ratio	More than 65dB
Audio output power	More than 2.0W(8ohm 10%THD)
