Used Good Icom IC-7100 HF/VHF/UHF Transceiver S/N: 2013107
Used Good Icom IC-7100 HF/VHF/UHF Transceiver S/N: 2013107. Radio tested and works as designed, power cable is cut short with spade connectors on it. Box has cut from UPC MIR in the past.
NOTE: Light Smoke Smell

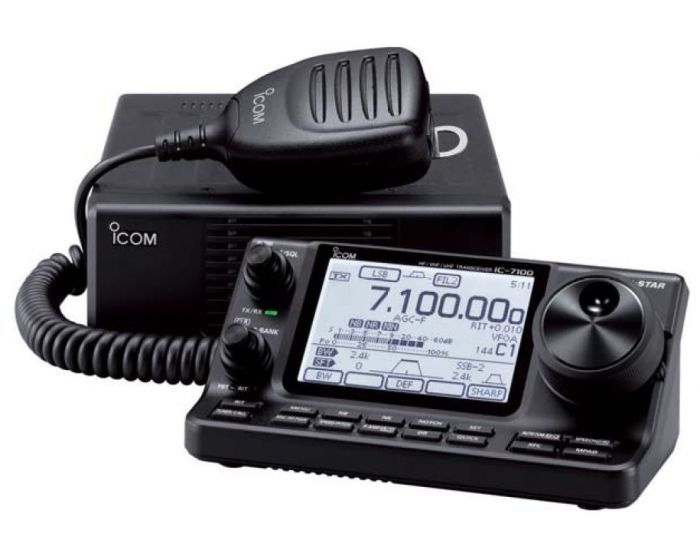

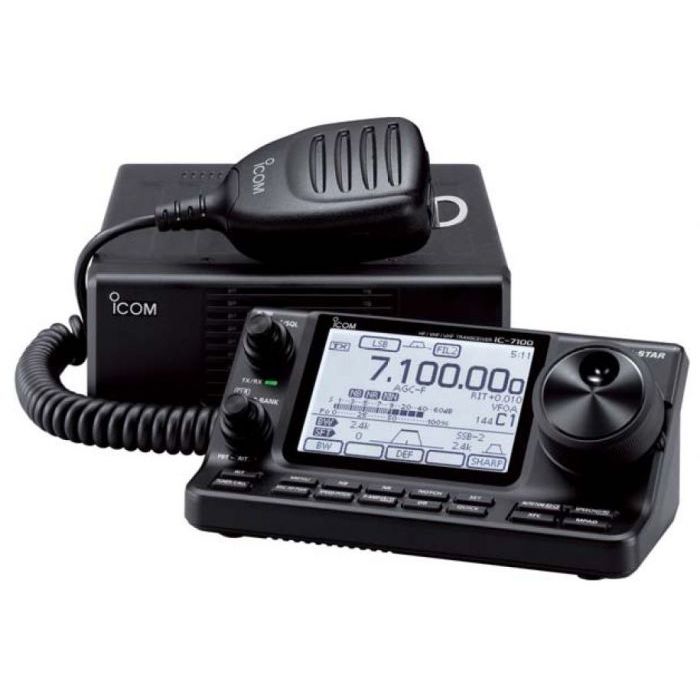

Touch Screen Control Portal
An amateur radio first! The radio control head features a large, multi-function, "touch screen"' DOT-Matrix LCD display that is positioned for easy view and operation. This is an important feature as the controller display not only provides information, but is your control portal to the IC-7100's feature settings and menus.
Breaking the concept that a radio panel should be flat, the IC-7100's control head is designed for an optimal view angle for the LCD as well as the spacing for large fingers, and plenty of room to have a large internal speaker along with a CW keyjack, phone/speaker, microphone, and control cable.
The IC-7100 provides D-STAR DV mode digital voice and low speed data communications. Add a third party GPS* and search the internal database based on your location. Additionally, the IC-7100 incorporates DR mode, which allows the user to control their D-STAR routing based on where they are talking “FROM” and where they want to talk "TO", including Reflector controls.
*External GPS receiver or manual data input required.
IF DSP features
The latest 32-bit floating point DSP supports many digital processing features such as digital IF filter, twin PBT, manual notch filters. Of course, those highgrade digital processing features work on all ham bands, from HF to the 70cm band.
- Built-in SD Card Slot for voice storage and data cloning
- Dual DSP chips deliver versatile digital processing performance
- Built-in RTTY demodulator and decoder
- Multi-function meter
- SWR graphic display
- DSP controller RF speech compressor
- Total of 505 memory channels
- Voice recording and playback functions
- 70–70.5MHz coverage, 50W output power (for Europe versions only, varies according to version.)
- ± 0.5ppm high frequency stability
- Optional RS-BA1 IP control remote control software
