Used LDG AT-600PROII SN55080
Comments: Used LDG AT-600PROII SN55080

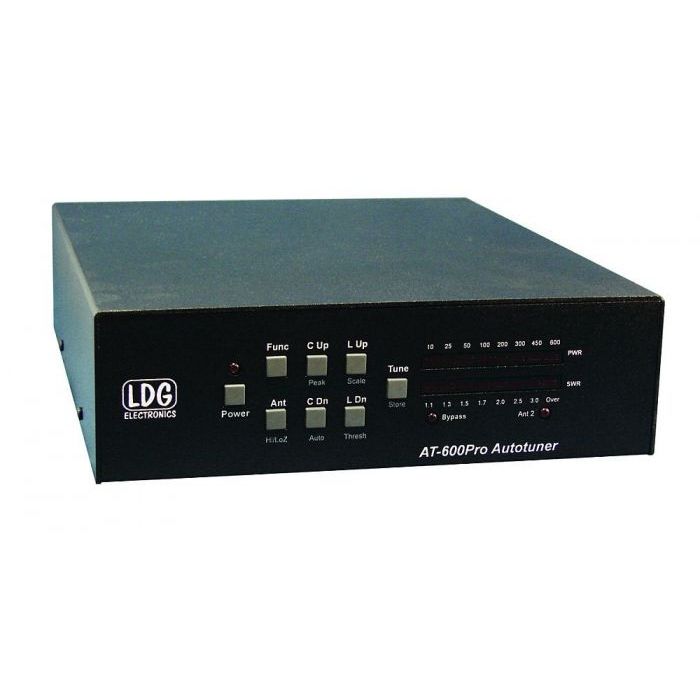

LDG AT-600PROII Autotuner
*Don't forget the optional analog M-600 meter.*
The LDG AT-600ProII is a general purpose automatic tuner intended for use with midsize amplifiers with up to 600 watts output on SSB or CW.
Like all LDG tuners the AT-600ProII operates automatically, beginning a tuning cycle whenever the SWR exceeds a preset limit. To protect its circuitry it will not tune at power levels above 150 watts; you simply bypass your amplifier (or place it in Standby) to complete a tuning cycle using only the exciter. The AT-600ProII also features LDG’s advanced memory tuning, providing 2,000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.
The AT-600ProII has a large, easy to read bar-graph wattmeter that show forward and reverse power with two selectable ranges (60 and 600 watts), as well as an SWR meter. The optional M-600 4.5" analog meter shows forward power (60 and 600 watt scales), reverse power, or SWR in peak or average mode. The AT-600ProII will interface with many popular transceivers so you can start a tuning cycle with the radio’s TUNE button. Dedicated control buttons on the tuner allow you to fine-tune capacitance and inductance on those rare occasions when the AT-600ProII can’t find a perfect match by itself.
The AT-600ProII features two output connectors so you can easily switch between two antennas. There are 2,000 memory locations for each antenna, allowing nearly instant returning on frequencies you’ve used before.
The AT-600ProII will tune from 1.8 to 54.0 MHz continuously, and will match Yagis, dipoles, inverted-Vs, slopers, or virtually any coax-fed antenna from 6 to 1000 ohms impedance (16 – 150 ohms on 6 meters). Tuning time is usually under 10 seconds; memory tuning time is under 0.2 seconds. Longwires or antennas fed with ladder line require an external balun, not included.
If you have any questions about which LDG tuner to purchase, take a look here!
- 600 Watts SSB and CW, 250 watts on 6M. 250 watts PSK and digital.
- Easy to read LED bar graph display for RF power, SWR and status
- Optional M-600 4.5 inch analog meter.
- 4,000 memories for instantaneous band changing
- Two position antenna switch with memories for each position
- Tuning time: 0.5 to 6 seconds full tune, 0.1 second memory tune
- Built in frequency counter for memory operation
- Frequency coverage: 1.8 to 54.0 MHz.
- Tunes 6 to 800 ohm loads (16 to 150 ohms on 6M)
- For Dipoles, Verticals, Vs, Beams or and Coax Fed Antenna
- Includes DC power cable.
- Power requirements: 11 to 16 volts DC at 750 mA max during tuning.
- Enclosure: 10.5D x 8.5W x 2.5H inches
- Weight: 3 pounds
