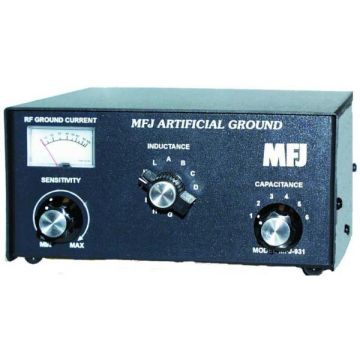

MFJ 1.8 - 30 MHz HF Artificial Ground

Create an artificial ground with the MFJ-931! It effectively places your rig near actual earth ground potential even if your rig is on the second floor or higher with no earth ground possible! It electrically places far away RF ground at your rig.

How's your RF ground? Do you have RF "hot spots" that "bite" you when you transmit? Do you have RF feedback that causes your rig to quit working on some bands? Do you have TVI/RFI that makes your neighbors hard to live with? Do you get weak signal reports because of extreme ground losses or radiation pattern distortion?

These problems could be caused by poor RF grounding, especially if your rig is on a second floor with no ground at all. Even if you have a good ground, a long connection wire can ruin it's effectiveness by isolating a true RF ground from your rig.

MFJ-931 creates an artificial RF ground! It resonates a random length of wire thrown along the floor and produces a tuned counterpoise. This ground effectively places your rig near actual earth ground potential even if your rig is on the second floor or higher with no earth ground possible.

Also, the MFJ-931 electrically places a far away RF ground directly at your rig -- no matter how far away it is. It reduces the electrical length of the ground connection wire to virtually zero by tuning out its reactance.

The MFJ-931 connects between your rig and a random length of wire or a connecting ground wire. It's tuned for maximum ground current using the built-in RF ammeter.

The MFJ-931 Artificial RF Ground covers 1.8 - 30 MHz and measures a compact 7.5W x 3.5H x 7D inches.
