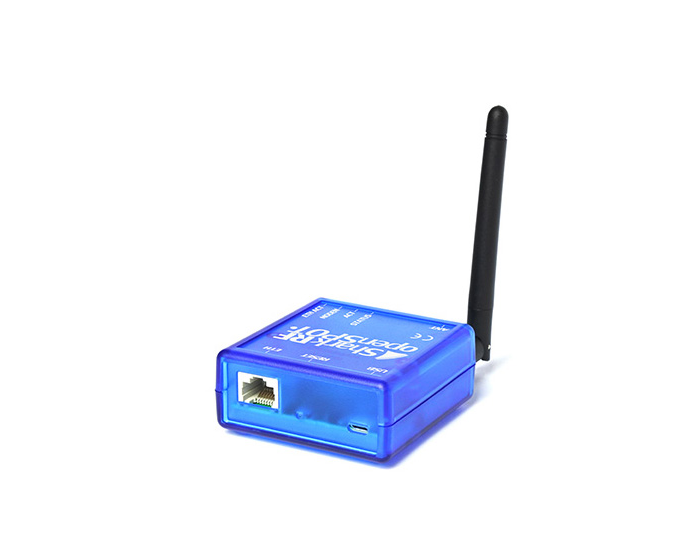

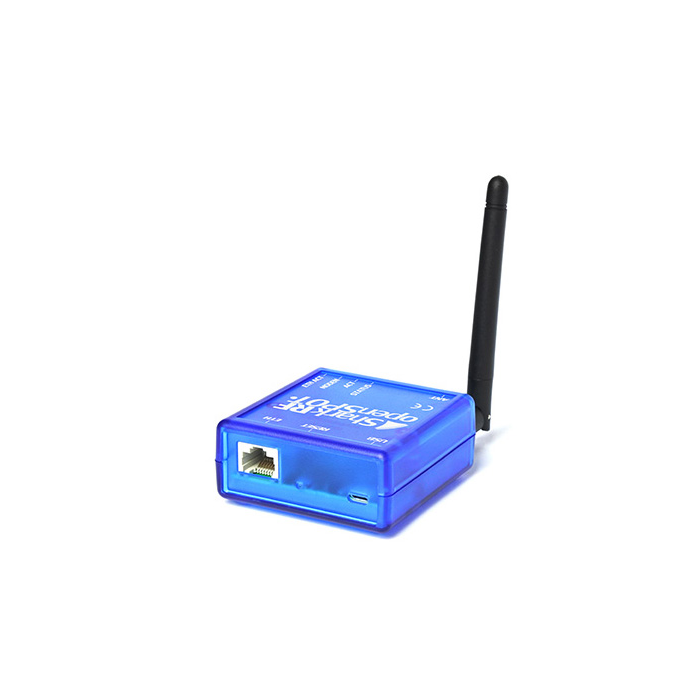

Used SharkRF openSPOT Standalone IP Gateway/Hotspot

Used SharkRF openSPOT Standalone IP Gateway/Hotspot

AS-IS - NO RETURNS

Designed for amateur radio

• Connect openSPOT easily to DMR, D-Star reflectors, C4FM/System Fusion rooms, and use your radio with excellent voice quality without sync errors
• Customize communication settings on the web interface
• Discover how digital protocols work, and connect your own apps by sending and receiving RF frames in UDP packets
• Create your own RF protocol by customizing RF modem settings, packet format, sync words (even with TDMA support)
• Use single, or separate RX/TX frequencies
• Optional erroneous packet generator module for testing other digital receiver

State of the art hardware design

• 2 CPUs running at 100 and 120MHz
• USB mass storage device bootloader for easy firmware upgrades
• 4 multicolor, bright LEDs for easy real time state monitoring
• Low power usage
• Automatic recalibration

DMR features

• Use openSPOT not only as a DMR hotspot, but as a base or mobile station with 2 timeslots simultaneously
• Timeslot repeating in base station/repeater mode
• Send and receive DMR SMS messages
• Built-in echo service
• Controllable with calls and custom short messages to preconfigured DMR IDs

Key features:

• Supports DMR (Brandmeister, DMRplus), D-Star (DCS, REF/DPlus, XRF/DExtra, XLX), System Fusion (FCS, YSFReflector) networks. More supported networks and features will be available with new firmware releases.
• Supports cross modem modes. Talk with your C4FM radio on DMR, and with your DMR radio on System Fusion networks!
• Very easy to use, works without a computer. No additional hardware required, works out of the box. All accessories included.
• Web interface for configuration and monitoring.
• HTTP, UDP/TCP API support.
• Custom 2FSK/4FSK RF protocol support with TDMA.
• USB powered, low energy consumption, 20mW RF output.
• Create your own private radio network using our open source server application.
• Runs fully embedded software written in pure C, running on an embedded real time operating system. No Linux, bulky Windows software or failing SD cards!
