Used TYT MD-380G DMR Radio (NO GPS) SN57860

$79.00
Used TYT MD-380G DMR Radio (NO GPS) SN57860 SKU: ZUS-1486

$79.00

SOLD!

Check Store Stock

Huntsville Store:

Las Vegas:

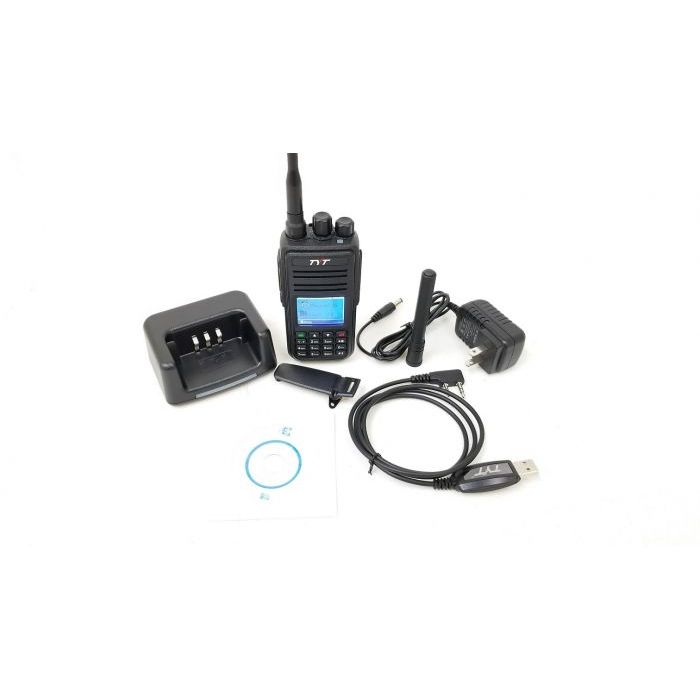

Comments: 1 x TYT MD-380 Digital Mobile Radio (DMR)
2x Antenna
1 x Li-ion Battery 2000mAh
1 x Belt Clip
1 x Charger
1 x Adapter
1 x User's Manual
1 x Programming Cable & CD
1 x Speaker mic for your radio (listen earpiece is not include)

TYT MD-380G 400-480MHz 5W UHF DMR Digital Radio Handheld Transceiver (without GPS)

This version of the MD-380G does NOT include GPS. If you would like the MD-380G with GPS, click HERE.

The TYT MD-380G is an excellent value if you are looking for a way to get into DMR. The MD380G offers 5W of output power with lower output settings available. It is compatible with Mototrbo Tier 1 and 2. This UHF DMR radio has a frequency range of 400-480MHz. It features 1000 channels, remote kill/stun/activate, voice prompt, a color LCD, built-in CTCSS/DCS, priority scan, DTMF decoding and encoding, private call, group call and all call in digital mode. In the box with the TYT MD-380G you will find a standard stubby antenna, a high gain antenna, ear-piece, a 2000mAh Li-ion battery, belt clip, charging cradle, wall adapter, user manual, programming cable and software. Be sure to purchase your TYT MD-380G from GigaParts today!

**Use of "MD-380 Tools" software will void your warranty.**

  • Emergency Call
  • Short Text Message via Keypad
  • Quick Text Messages
  • Manual Dial
  • Remote Monitor
  • Remote Check
  • Remote Disable/Enable
  • Enhanced Encryption
  • Private/Group/All Call
  • Lone Worker
  • Power On Password
  • Programming Password
  • Zone Selection
  • Date/Time Programmable
  • Remote Kill/Stun/Activate
  • Voice Prompt
  • Power-On Protection
  • Color LCD Display
  • Text Messages in Digital Mode
  • Encryption Function
  • Built-in CTCSS/DCS
  • Up to 1000 Channels
  • Priority Scan
  • Complying with digital protocol ETSI TS 102 361-1, -2, -3
  • Compatible with MotoTRBO Tier I & II
  • DTMF decoding and encoding
  • Updated Software  available for new features
  • Private Call, Group Call, All Call in Digital Mode
  • Operate in both Digital and Analogue mode, allows easy migration from Analog to Digital
  • Provide clearer voice communications in digital mode, throughout the coverage area
General:
Frequency Range UHF:400-480MHz
Channel 1000 Channels
Channel spacing 12.5KHZ
Operating voltage 7.4v
Battery type Li-ion
Operating temperature -30℃+60℃
Store temperature -40℃+85℃
Antenna Impedence 50Ω
Audio output power [email protected]Ω
Battery capacity 2000mAh standard Li-ion battery
Dimension(H*W*D) 131*61*36mm
Weight 258g

Transmitter:
Output power High: ≤5W(HI) / Low: ≤1W(Low)
Frequency stability +/-1.0ppm
Adjacent channel Power ≤-60dB
Free time slot power TDMA: ≤57dBm
Hum and Noise -40dB @ 12.5KHZ
Spurious Radiation Antenna:9KHz-1GHz≤-36dBm
1GHz-12.75GHz ≤-30dBm
FM modulation mode 12.5KHZ:11K0F3E
4FSK digital mode 12.5KHZ(data only):7K60FXD
12.5KHZ(data+voice):7K60FXE
Modulation Maximum Deviation [email protected]
Nonactive slot power -57dBm
Digital protocol ETSITS102 361-1 -2 -3
Vocoder type AMBE+2TM
Audio response +1dB~-3dB
Modulation BER(Bit error rate) ≤5%

Receiver:
Analog sensibility 0.35uV/-116dBm(20dB SINAD)  /  0.22 uV/-120dBm(Type)
Digital sensibility 0.3 uV/-117.4dBm(BER 5%) /  0.22 uV/-110dBm(BER 1%)
Co-channel Rejection ≥-12dB
Spurious response TIA603C: 75dB  ETSI:  70dB
Adjacent channel selectivity TIA603C: 65dB  ETSI:  60dB
Rated audio power 1W
Audio response =1dB~-3dB
Rated audio distortion 3%(Type)
Spurious radiation Antenna:9KHz-1GHz ≤-57dBm  / 1GHz-12.75GHz ≤-47dBm
