Used TYT MD-390 SN57826

$89.00
Used TYT MD-390 SN57826 SKU: ZUS-1827

$89.00

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

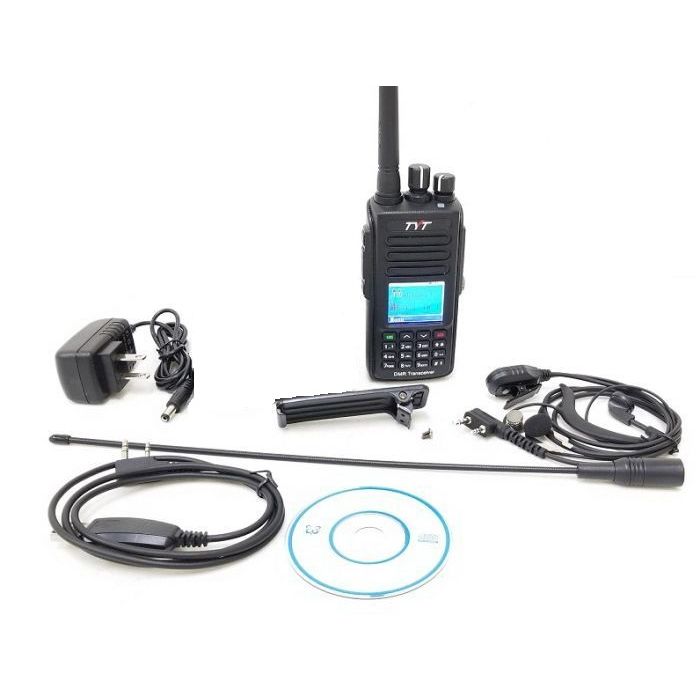

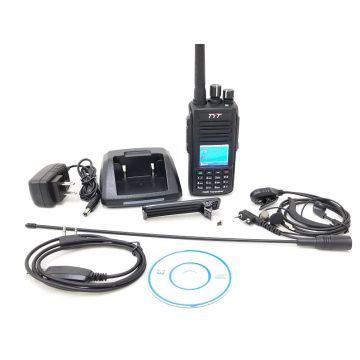

Used Very Good MD-390 SN57826. Unit was on demo. Everything is in very good condition. However, it is missing the charging cradle. The image shown above is for representation of what the product looks like. It is for representation purposes only and is not the item for sale.

TYT MD-390 Waterproof 400-480MHz UHF DMR 5W Digital Radio Handheld Transceiver (w/out GPS)

This version of the MD-390 does NOT include GPS.

The TYT MD-390 is a IP67 waterproof rated UHF DMR Handheld transceiver. It is compatible with Mototrbo Tier 1 and 2. This UHF DMR radio has a frequency range of 400-480MHz and a power output of 5W. It features 1000 channels, remote kill/stun/activate, voice prompt, a color LCD, built-in CTCSS/DCS, priority scan, DTMF decoding and encoding, private call, group call and all call in digital mode. Be sure to purchase your TYT MD-390 from GigaParts today!

  • Emergency Call
  • Short Text Message via Keypad
  • Quick Text Messages
  • Manual Dial
  • Remote Monitor
  • Remote Check
  • Remote Disable/Enable
  • Enhanced Encryption
  • Private/Group/All Call
  • Lone Worker
  • Power on Password
  • Programming Password
  • Zone Selection
  • Date/Time Programmable
  • Remote Kill/Stun/Activate
  • Voice Prompt
  • Power-on Protection
  • Color LCD Display
  • Text Messages in Digital Mode
  • Encryption Function
  • Built-in CTCSS/DCS
  • Up to 1000 Channels
  • Priority Scan
  • Complying with digital protocol ETSI TS 102 361-1, -2, -3
  • Compatible with MotoBRBO Tier I & II
  • DTMF Decoding and Encoding
  • Updated software available for new features
  • Private call, group call, all call in digital mode
  • Operate in both Digital and Analogue mode, allows easy migration from analog to digital
  • Provide clearer voice communications in digital mode, throughout the coverage area
General
Frequency Range UHF:400-480MHz
Channel 1000 Channels
Channel spacing 12.5KHZ
Operating voltage 7.4v
Battery type Li-ion
Operating temperature -30℃+60℃
Store temperature -40℃+85℃
Antenna Impedence 50Ω
Audio output power [email protected]Ω
Battery capacity 2200Mah standard Li-ion battery
Dimension(H*W*D) 131*61*36mm
Weight 258g
Transmitter
Output power High: ≤5W(HI)   Low: ≤1W(Low)
Frequency stability +/-1.0ppm
Adjacent channel Power ≤-60dB
Free time slot power TDMA: ≤-57dBm
Hum and Noise -40dB @ 12.5KHZ
Spurious Radiation Antenna:9KHz-1GHz ≤-36dBm  /  1GHz-12.75GHz ≤-30dBm
FM modulation mode 12.5KHZ:11K 0 F 3 E
4FSK digital mode 12.5KHZ(data only):7K60FXD
12.5KHZ(data+voice):7K60FXE
Modulation Maximum Deviation [email protected]
Nonactive slot power -57dBm
Digital protocol ETSITS102 361-1,-2,-3
Vocoder type AMBE+2TM
Audio response +1dB~-3dB
Modulation BER(Bit error rate) ≤5%
Receiver
Analog sensibility 0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dB m(Type)
Digital sensibility 0.3 uV/-117.4dBm(BER 5%) / 0.7 uV/-110dBm(BER 1%)
Co-channel Rejection ≥-12dB
Spurious response TIA603C: 75dB  ETSI:  70dB
Adjacent channel selectivity TIA603C: 65dB  ETSI:  60dB
Rated audio power 1W
Audio response =1dB~-3dB
Rated audio distortion 3%(Type)
Spurious radiation Antenna:9KHz-1GHz  ≤-57dBm / 1GHz-12.75GHz ≤-47dBm
