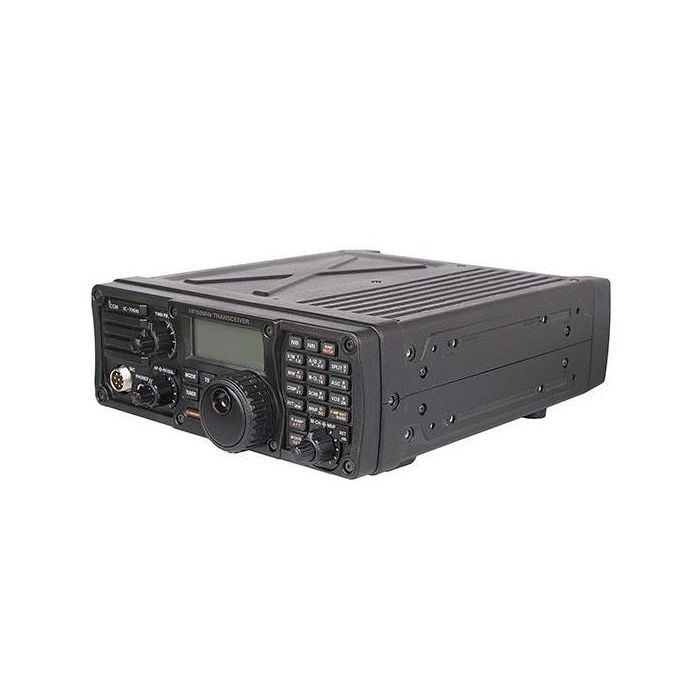

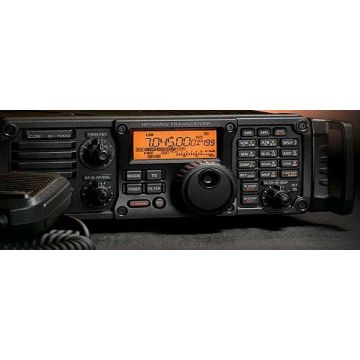

Used Very Good ICOM IC-7200 HF Transceiver S/N: 0205937
Radio tested and works as designed
Looks LIKE NEW condition
Built for the great outdoors
With an excellent balance between cost and performance, the IC-7200 will open the door for ham beginners to the HF world, as well as will satisfy long experienced operators' needs as a secondary rig for carrying out to the field.
IF DSP
The latest IF DSP technology is employed in the IC-7200. While the IC-7200 is an entry-class transceiver, advanced digital features are comparable to higher class transceivers.
AGC loop management
Distortion and blocking from strong nearby signals are prevented by placing DSP functions inside the AGC loop. The AGC time constants are selectable from fast, slow and off for each operating mode.
Digital IF filter
Optional filters will never be required for the IC-7200. The built-in digital filter allows you to flexibly select the filter width and shape from soft and sharp* and provides cutting-edge filter characteristics.
*Filter shape is selectable for SSB and CW modes only.
Manual notch filter
The manual notch filter delivers more than 70dB of attenuation. Strong interring tones will be eliminated without adversely affecting the AGC loop performance. ON the bottom right of the front panel, a dedicated control knob adjusts the notch filter frequency.
Digital Twin PBT
Only Icom brings you twin passband tuning! Tailor your IF passband with the Twin PBT by electronically shifting the upper and lower edges of the IF filter. Depending on the use of the concentric knobs, you can either narrow the IF passband, or shift the entire passband to eliminate interfering signals.
Digital noise reduction
The digital noise reduction reduces background noise and improves the signal-to-noise ratio. The noise reduction level is adjustable in 16 steps. It improves the readability of voice and data signals.
Digital noise blanker
The noise blanker reduces pulse-type noise such as engine ignition and sparking. The NB level and width (blanking duration) are adjustable in 100 steps.
High stability transmitter
The DDA (Direct Digital Synthesizer) creates a clear, clean transmit signal and improves the C/N ratio. With a dual-fan cooling system, the IC-7200 provides stable high quality output even during high duty cycle operation.
USB port for PC control
The IC-7200 can be controlled by a PC through a USB port using the CI-V data format. In addition, modulator and received audio can also be transferred over the USB cable. By using appropriate external software, you can record incoming calls and/or transmit preprogrammed messages from your PC.
RF speech compressor
The digital RF speech compressor increases your average talk power in SSB mode. Even when the compression level is increased, the DSP controlled RF speech compressor provides low distortion audio.
CW mode operation
Full break-in, selectable CW carrier point (USB or LSB) and adjustable CW pitch are also standard.
Tough construction against water intrusion*
Waterproof protection technologies that are used in Icom's marine radios are applied to the buttons and knobs on the front panel to provide a measure of protection against water intrusion.
*IC-7200 is not waterproof.
Rugged design for outdoor use
The rugged design of the IC-7200 means your enjoyment of this rig is not limited to your shack only.
"Rear bumper"
The "rear bumper" protects various connectors on the rear panel and lets you stand the radio on its rear end when the antenna is disconnected, such as while moving or packing the radio.
Other Features:
RIT
VOX
0.5ppm frequency stability
LCD backlight (Hi/Lo/Off)
CI-V interface
201 memory channels
Built-in 20dB attenuator
Preamplifier
Dial lock
Auto TS function
1Hz step tuning
Band stacking register
Built-in voice synthesizer
Quick split
Front facing speaker
Quick set mode
