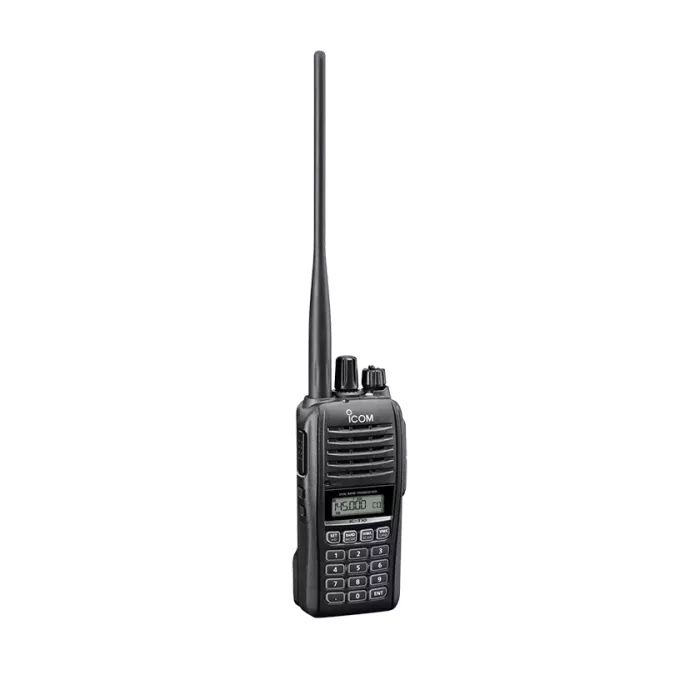

Used (Very good) Icom IC-T10 5W VHF/UHF Dual Band FM Handheld Transceiver

Ham HT Radios

Used (Very good) Icom IC-T10 5W VHF/UHF Dual Band FM Handheld Transceiver

Name: Used (Very good) Icom IC-T10 5W VHF/UHF Dual Band FM Handheld Transceiver
Brand: Icom
SKU: US2548
Price: 186.29 USD
Availability: InStock

SKU: US2548

Availability:

In stock

$186.29

VIP Price

After Mail-In Rebate

Description

Specifications

Customers who bought this item also bought

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

General
Frequency Coverage	USA Version	TX	144-148, 430-450MHz (*Working Range)
		RX	136-174, 400-479MHz (*Working Range)
		FM broadcast	88-108 MHz
Number of channels		208 Channels (Including 2 call and 6 scan edges)
Type of emission		F2D, F3E (FM)
Frequency stability		±2.5ppm (-20°C to +60°C on the basic of 25°C)
Power Supply Requirement		7.2V DC nominal
External DC Power		10-16V DC (with AD-149H)
Current Drain (approx)	TX High	Less than 2.5A
	RX Max. Audio	Less than 600 mA
Antenna impedance		50Ω (SMA)
Operating temperature range		-20°C to +60°C
Dimensions (W x H x D, Projections not included)		2.1 x 4.4 x 1.2 in (with BP-280)
Weight (approximate)		9.8 oz (with BP-280 and antenna)

Transmitter
Output Power	5W, 2.5W, 0.5W
Max. frequency deviation	±5 kHz / ±2.5 kHz (W/N)
Spurious emissions	Less than -60 dBc(High, Mid) \| Less than -13 dBm (Low)
Ext. microphone connector	3-conductor 2.5(d) mm (1/10")/2.2kΩ

Receiver
Receiver sensitivity		Less than 0.18 uV (at 12 dB SINAD)
Squelch sensitivity		Less than 0.18 uV (at squelch threshold)
Adjacent channel selectivity		More than 55 dB (FM, 25kHz)
		More than 50 dB (FM Narrow, 12.5 kHz)
Spurious response		More than 60 dB
Audio output power (at 5% distortion, 8Ω load)	Internal SP	1500 mW (typical)
	External SP	450 mW (typical)
	HM-222HLWP	1500 mW (typical)
Ext. speaker connector		3-conductor 3.5 (d) mm (1/8")/8Ω
