| General |
| Specification |

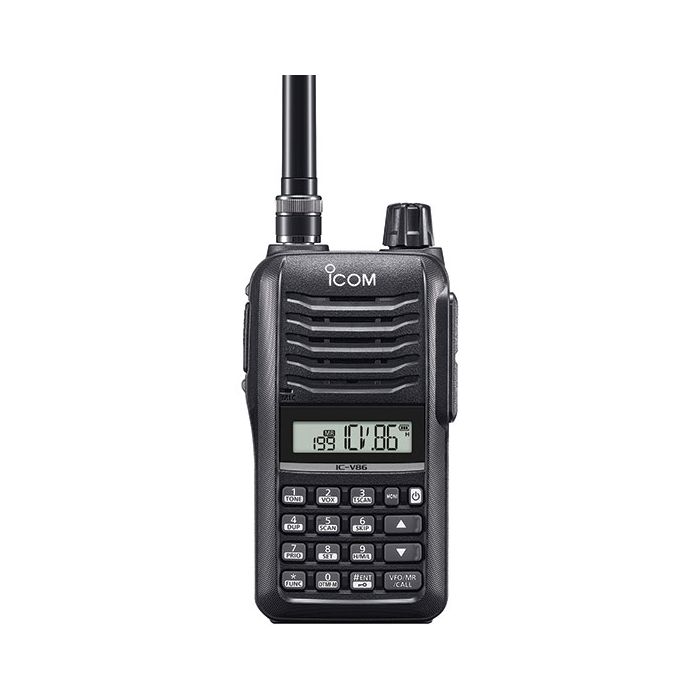

IC-V86 |
IC-U86 |
| Frequency range (TX/RX guaranteed range) |
TX: 144–148 MHz
RX: 136–174 MHz |
TX: 430–450 MHz
RX: 400–472 MHz |
| Type of emissions |
F2D, F3E (FM, FM-N) |
| Number of channels |
207 channels (200 memory channels, 1 call channel and 6 scan edges) |
| Antenna impedance |
50Ω |
| Power supply requirement |
7.5V DC |
| Operating temperature range |
–20 ˚C to +60 ˚C, –4 °F to +140 °F |
| Frequency stability |
±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F) |
Current drain
(For the transceiver with a "U" mark on the serial number label) |
TX (EX Hi/Hi/Mid/Low): 1.6/1.4/1.0/0.5 A typical, EXP1: 1.6/1.5/1.0/0.5 A typ., EXP2: 1.6/1.4/0.9/0.5 A typ.
RX (Max. audio): 450 mA typ. (INT SP), 190 mA typ. (EXT SP, Single end), 450 mA typ. (EXT SP, BTL) |
Dimensions (W×H×D)
(Projections not included) |
58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) |
| Weight (Approximate) |
300 g, 10.6 oz (with BP-298, FA-B57V) |
290 g, 10.2 oz (with BP-298, FA-B57U) |
| Transmitter |
| Specification |
IC-V86 |
IC-U86 |
| Output power (EX Hi/Hi/Mid/Low) |
7.0/5.5/2.5/0.5 W |
5.5/4/2/0.5 W |
| Maximum frequency deviation |
±5.0 kHz/±2.5 kHz (Wide/Narrow) |
| Spurious emissions |
Less than –60 dB |
| External microphone connector |
3-conductor 2.5 (d) mm (1/10")/2.2 kΩ |
| Receiver |
| Specification |
IC-V86 |
IC-U86 |
| Sensitivity |
–124 dBm typical |
EXP1: –121 dBm typical
EXP2: –123 dBm typical |
| Squelch sensitivity |
–126 dBm typical |
EXP1: –123 dBm typical
EXP2: –125 dBm typical |
| Selectivity (Wide/Narrow) |
75 dB typical/ 70 dB typical |
70 dB typical/ 68 dB typical |
| Intermodulation |
65 dB typical |
Audio output power
(For the transceiver with a "U" mark on the serial number label) Internal SP |
1500 mW typical (with 8 Ω load) |
Audio output power
(For the transceiver with a "U" mark on the serial number label) External SP |
450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected) |
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω |
| Applicable U.S. Military Specifications |
| Standard |
MIL-810 G |
| Â |
Method |
Procedure |
| Low Temperature |
502.5 |
I, II |
| Temperature Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
| Also meets equivalent MIL-STD-810-C, -D -E and -F. |
| Applicable IP Rating |
| Ingress Protection Standard |
Dust and Water |
| Â |
IP54 (Dust-protection, water resistance) |
| All stated specifications are subject to change without notice or obligation |
