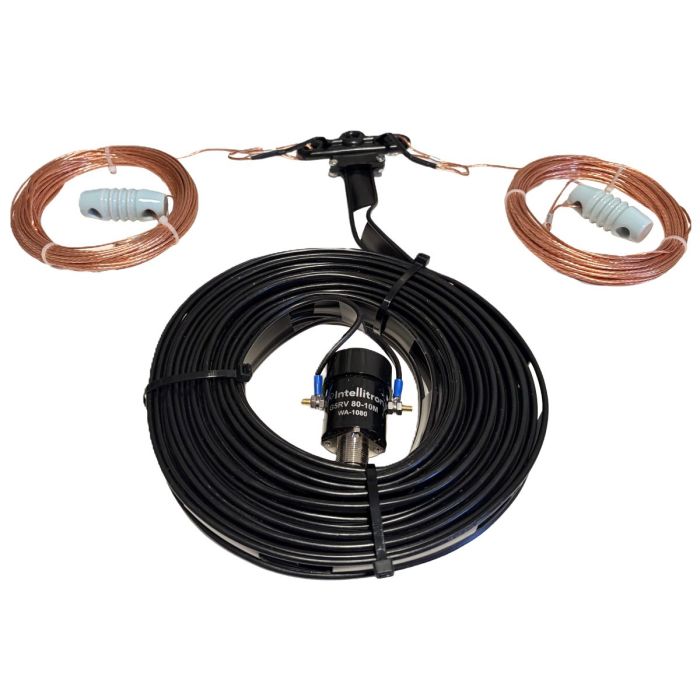

Used (Very good) Intellitron WA-1080 G5RV Dipole Antenna 80-10M SO-239 Connector

Used (Very good) Intellitron WA-1080 G5RV Dipole Antenna 80-10M SO-239 Connector

Intellitron: Expertly Built, Economically Priced

When the amateur radio bands are open, you need an antenna that covers the full spectrum of HF operations, and the Intellitron WA-1080 G5RV Dipole Antenna is the classic answer. This is the full-size G5RV, engineered for maximum performance and multi-band versatility from 80 Meters straight through to 10 Meters, and even offers capability on the elusive 160 Meter band with an external tuner and proper ground system. It's the quintessential all-band solution for the dedicated HAM, blending exceptional construction with legendary operating capability.

This fully assembled antenna system is ready to be hoisted high, providing the low-angle radiation needed for working DX on the higher bands and the near-vertical incidence skywave (NVIS) capabilities essential for stateside contacts on 80/40M. The traditional G5RV design minimizes complexity with a single feed point and no lossy traps. The combination of the long, efficient radiating section and the specific length of the balanced ladder line acts as a highly effective matching network, ensuring your ATU can quickly find a low Standing Wave Ratio (SWR) across the entire HF spectrum. Built with heavy-duty materials to withstand the elements, the WA-1080 is a robust and reliable addition to any amateur radio station. Get ready to log some serious contacts across all major HF bands.

Features:

• Comprehensive HF Coverage: Efficiently operates on all major bands from 80 Meters to 10 Meters (with an external tuner).
• Extended Band Capability: Tuneable for operation on the 160 Meter band, acting as a top-loaded vertical (requires tuner and ground).
• Power Handling: Rated to handle high-power rigs, safely accepting up to 1500 Watts PEP.
• Flexible Installation: Easily installs in a variety of configurations, including as a flat-top Dipole, Inverted V, or a Sloper.
• Durability: Features a robust molded ABS center insulator and corrosion-resistant stainless steel hardware for longevity.

Specifications:

• Overall Wire Length: Full-size 102 ft (approximate) HF dipole radiator.
• Antenna Wire: High-strength 14 AWG stranded copper wire for excellent conductivity.
• Matching Section: 32.5 ft of 450-ohm ladder line for efficient impedance transformation.
• Feed Point: Waterproof SO-239 connector for a secure coaxial cable connection.

UPC Code: 810106912288
