Used Very Good Yaesu FT818 SN8E900071. The radio has no marks or scratches on it. All the accessories are in the box and in good condition.

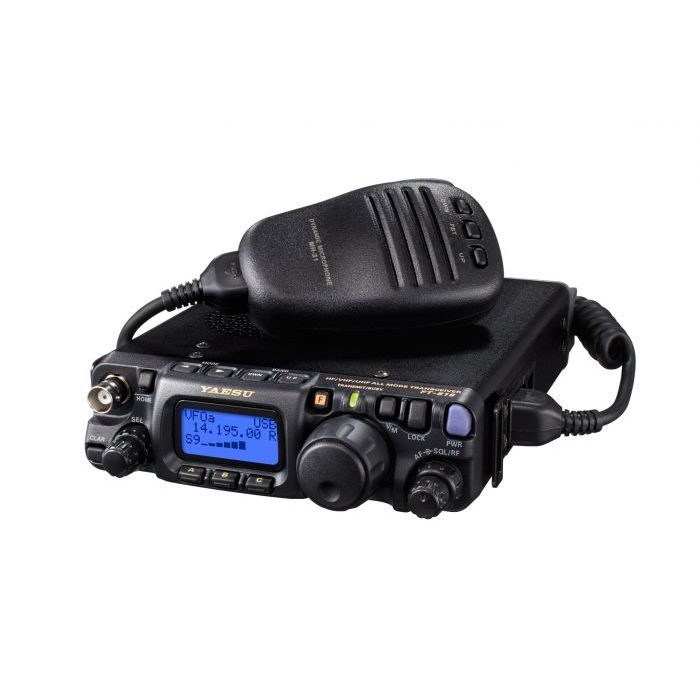

Yaesu FT-818 6W HF/VHF/UHF All-Mode Portable Transceiver
The new Yaesu FT-818 incorporates all of the basic and attractive features of the ever-popular FT-817ND while providing upgrades desired by many existing owners.
The FT-818 provides 6W of solid output power with an external DC power source. The supplied Ni-MH battery pack (SBR-32MH) has been upgraded to now provide larger battery capacity - 9.6v/ 1900mAh. The recent launch of several new satellites is a certain indicator that the large global community of satellite enthusiast are going to be very delighted to learn that the FT-818 includes a Built-in TCXO-9 oscillator that gives the FT-818 fantastic frequency stability (±0.5ppm).
The FT-818 includes all the useful functions that are included in the FT-817ND: Dual VFOs; Split-Frequency operation; IF Shift; Clarifier “R.I.T”; IF Noise Blanker; RF Gain and Squelch control; IPO (Intercept Point Optimization); AM Aircraft reception; AM and FM Broadcast reception; VOX; Built-in Electronic Keyer; Adjustable CW Pitch; Automatic Repeater Shift (ARS); Built-in CTCSS Encoder/ Decoders; 208 memory channels with 10 memory groups; two antenna connectors; Automatic Power-Off (APO) and Time-Out-Timer(TOT) functions; and so on.
The FT-818 must have the batteries in when using the adapter.
Download the Yaesu FT-818 Manual Here
Frequency Ranges:
RX:
- 100 kHz - 33 MHz
- 33 MHz - 56 MHz
- 76 MHz - 108 MHz
- 108 MHz - 154 MHz
- 420 MHz - 470 MHz
TX:
- 1.8 MHz - 29.7 MHz (5.3320 MHz/ 5.3480 MHz/ 5.3585 MHz/ 5.3730 MHz/ 5.4050MHz)
- 50 MHz - 54 MHz
- 144 MHz - 148 MHz
- 430 MHz - 450 MHz (Amateur Bands only)
Circuit Type: Double-Conversion Superheterodyne (SSB/CW/AM/FM)
Single-Conversion Superheterodyne (WFM)
Modulation Type: A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM), F1D(PACKET), F2D(PACKET)
RF Power Output : 6 W (SSB/CW/FM), 2 W (AM Carrier) @13.8 V
Memory Channels: 208
Case Size(W x H x D): 135 x 38 x 165 mm (5.31" x 1.5" x 6.50") w/o knob and connector
Weight: 900 g (1.98 lbs) (w/o Battery, Antenna and Microphone)
