Used Yaesu FP-1030A SN66026

$199.00
Used Yaesu FP-1030A SN66026 SKU: ZUS-1866

$199.00

SOLD!

Check Store Stock

Huntsville Store:

Las Vegas:

Used Good Yaesu FP-1030A SN66026. Unit is in really good condition. However, when powered up, there is a slight cigarette smell.

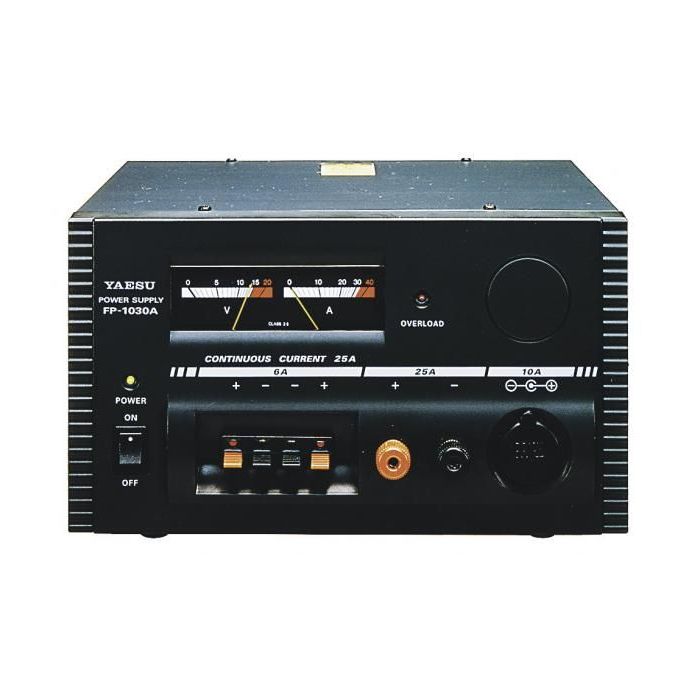

Yaesu FP-1030A Linear 25A Power Supply w/Meters

The Yaesu FP-1030A is a high-quality, Regulated DC Power Supply specifically designed for use with DC powered radio equipment. The FP-1030A provides 13.8 Volts DC at up to 25 Amps (continuous duty).

Overload Protection
A current foldback circuit is utilized to prevent damage to the unit from excessive current drain. An "Overload" indicator becomes illuminated when an overload condition exists.

High RFI lmmunity
The FP-1030A is specifically designed for use with radio communication equipment. It therefore includes extensive filtering to provide high immunity from erratic operation which might be caused by Radio Frequency interference (RFl).

Multiple DC Output connections
Besides the two pairs of (64) snap-in DC connections and the (25A) screw-on DC outputerminal, the FP-1030A features a cigar-lighter type DC output jack for radio equipment equipped with a hatching cigarlighter plug.

Voltage Type: AC 120V
Rated Voltage Range: +-7%
Output Voltage: 13.8V DC (F|XED)
Output Current: 25 A CONTINUOUS
Overload Protection: 27A
Ripple Voltage: BETTER THAN 3mVp-p AT 13.8V, 25 A
Cooling System: THERMOSTATICALLY-CONTROLLED COOLING FAN
Circuit Type: LINEAR SERIES
AC Input Fuse: 8A
Weight: 9.5 kg (20.9 LBS)
Dimensions: 250 (W) x 150 (H) x 240 (D) mm (9.8" x 5.9" x 9.5")
