Watertight Panel Mount Housing for Two Powerpole Connectors

Watertight Panel Mount Housing for Two Powerpole Connectors

Easily add Powerpole outputs to your dashboard, go-box, panel or chassis mount. Weather tight rubber cover protects connectors when not in use. High output capacity of up to 45A on each Powerpole. Includes (4) 30A contacts for 12-14 AWG wire. Fits 1-1/8" dia. hole. User removable retaining pin allows for changing Powerpole connectors to different colors if needed.

Tech Specs

Connections     Supplied with (2) Red/Black Powerpole Connectors. Customer may purchase alternate colored housings and change colors as needed.

Compatibility     Mates with all 15, 30 & 45 amp Powerpole connectors

Maximum Voltage     58VDC

Maximum Amperage     Up to 45A each Powerpole connector (continuous). Includes: 30A Powerpole contacts for 12-14 AWG wire size.

Mountable             1-1/8" diameter standard panel mounting hole.

Rear Housing Depth             7/8" (not including wiring)

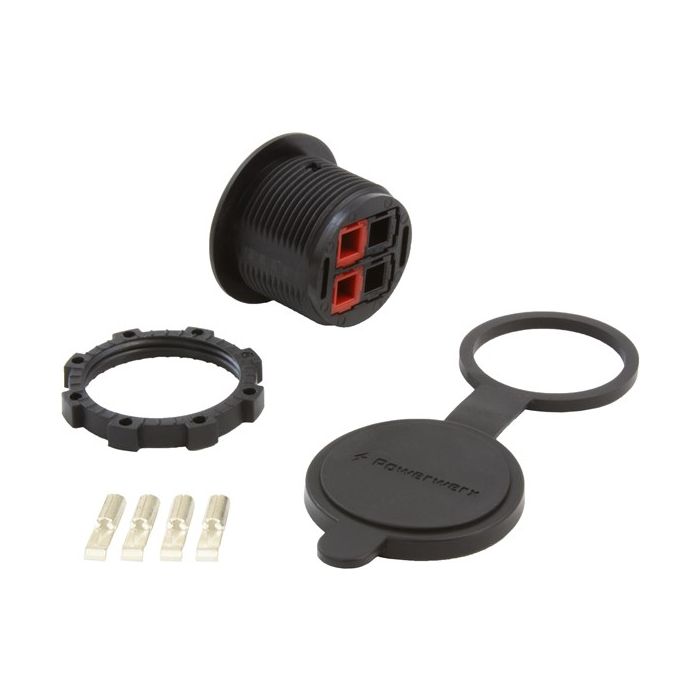

Includes: Dual Body in Black color, (2) Powerpole Red/Black connector, (4) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Weather Tight Black Rubber Cover, (1) Threaded Locking Nut
