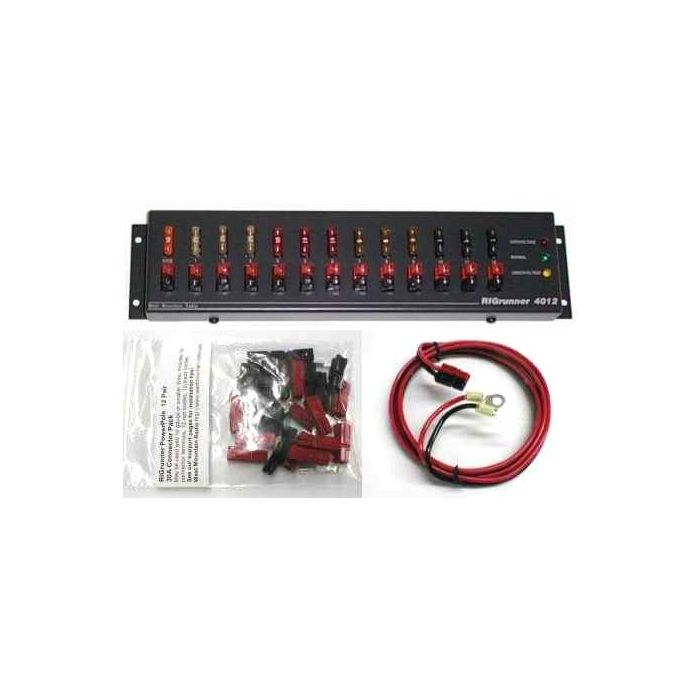

RIGrunner 4012 DC Power Panel COMPLETE
RIGrunner is the most convenient and safest way to connect all of your 12 volt equipment to a power source. It uses the excellent Anderson Powerpole® connectors, standardizing all of your 12 VDC connections.
40 amp 12 VDC continuous duty with 12 outlets
Precision voltage monitoring with visual/audible alarm for over and under voltage
Specifications
Overall Dimensions (maximum, w/o cables) 1.4" H x 11.75" W x 3.0" D
Weight 15 1/4 oz.
Maximum total current 40 amps
Maximum single individual outlet current 40 amps (fuse protected)
ICAS current rating (fuse limited) 37 amps
Precision comparator window points. 11.5,15.0 Volts
Metering Accuracy better than 2% @ 25 deg.C.
Audible alert SPL output ~ 60dB SPL @ 1 meter
Maximum voltage (meter circuit) 32 volts
Reverse polarity protection (meter circuit) Yes
