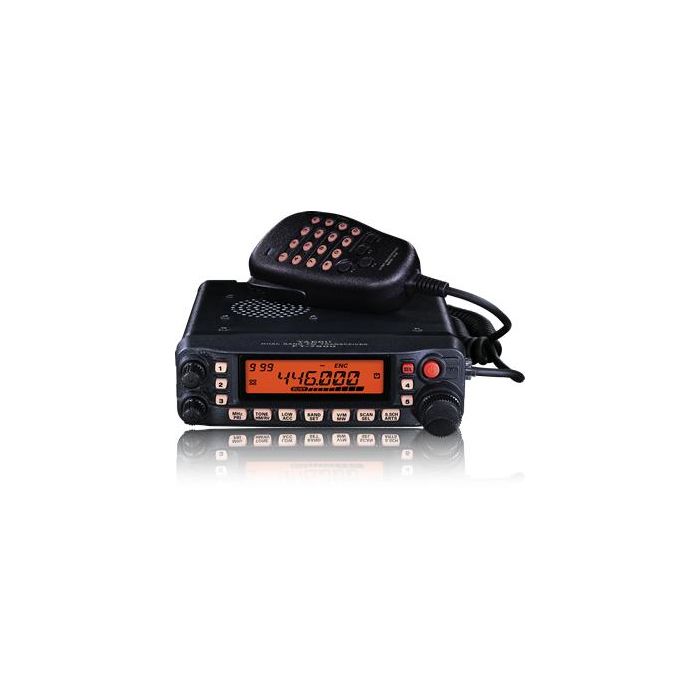

Yaesu FT-7900R 2 Meter / 70 cm Dual Band FM Transceiver With Exceptionally Wide Receiver Coverage
-- Includes YSK-7800 Separation Kit --
The FT-7900R provides 50 Watts of power on the 144 MHz band, and 40 Watts on the 430 MHz, and is designed for simplicity of operation along with high performance in the receiver section. The FT-7900R is ideal for the active Ham who has a need for simplex, repeater, or FM satellite operation on both bands, but without the complication of cross-band repeat capability, which is available on the FT-8900R model.
High Power Output
Boasting a big 50 Watts of power output on 144 MHz, and 40 Watts on 430 MHz, the FT-7900R also includes provision for three lower power levels, so you never have to use more power than you really need. The power level is stored in regular and Hyper Memory registers, too
Wide Receiver Frequency Coverage
The FT-7900R provides receiver coverage from 108 to 520 MHz, and 700 to 999.99 MHz (cellular blocked), so you have available a wide range of monitoring excitement, including AM Aircraft, Public Safety, Government, Business, and, of course, Amateur communications. The synthesizer steps appropriate for the operating band are automatically selected, too!
Large LCD Display
The large backlit LCD on the FT-7900R ensure excellent visibility
Five front panel keys allow complete transceiver configuration status to be stored for convenient one-touch recall. So you can set up favorite frequencies in each operating band, including the receive-only bands, and then recall them with a single touch of a button!
Over 1000 Memory Channels
The FT-7900R’s incredible memory channel capacity includes registers for over 1000 channels, each capable of storing a 6-character Alpha-Numeric label. And the memories may be stored in any of the 20 available memory groups; a particular memory channel may also be stored in multiple groups, if desired.
NOAA Weather Alert (U.S. Version only)
A special memory bank on the FT-7900R allows instant recall of the ten NOAA Weather frequencies. What’s more, you can enable a special “Severe Weather Alert” feature that will sound an alarm when a NOAA station transmits the special alert tone during a severe weather alert broadcast.
YSK-7800 Remote Mounting Kit Included
Using the YSK-7800 Separation Kit, which contains both cabling and a bracket for the remote front panel, you can mount the FT-7900R’s front panel on the vehicle’s dash board, then stow the radio’s body under the seat or in some other convenient, out-of-the-way location. The cables are approximately 20 feet (6 m) in length.
WiRES™ Internet Linking Capability
The FT-7900R’s DTMF signaling capability includes provision for easy access to Yaesu’s WiRES™ (Wide-coverage Internet Repeater Enhancement System) Internet linking nodes, as well as other linking systems that require a DTMF string for access.
- RX: 108.000 - 520.000 MHz and 700.000 - 999.990 MHz (Cellular Blocked)
- TX: 144.000 - 148.000 MHz and 430.000 - 450.000 MHz
- 5/10/12.5/15/20/25/50/100 kHz
Modes of Emission
- F3E, F2D, F2A
- 13.8 VDC, negative ground
- RX: 0.5A (Squelched)
- TX: 8.5A (144 MHz, 50W)
- TX: 9A (430 MHz, 45W)
Case Size (W x H x D): 5.5" x 1.6" x 6.6"
Weight: 2.2 lb.
- 50/20/10/5 W (144 MHz)
- 45/20/10/5 W (430 MHz)
- Yaesu FT-7900R Transceiver
- MH-48A6J Hand Mic
- MMB-36 Mobile Mounting Bracket
- YSK-7800 Separation Kit
- DC Power Cord w/Fuse
- Spare 15A Fuse
- Operating Manual
- Warranty Card
