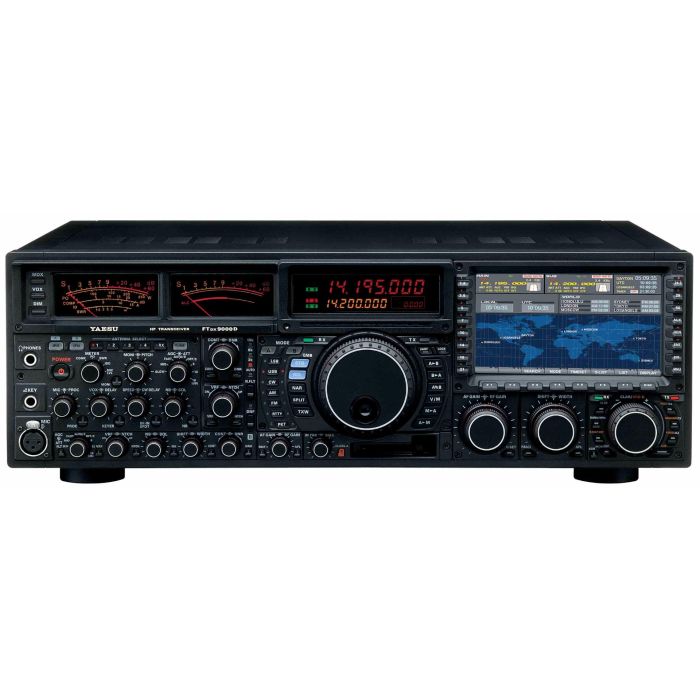

Yaesu FT-DX9000D HF/50MHz 200W Transceiver
The Yaesu FT-DX9000D is a groundbreaking HF/50 MHz Elite Class Transceiver from the YAESU Engineering Team. The FT-DX9000D features unmatched close-in dynamic range, flexible selectivity choices due to its advanced 32-bit DSP filtering, a high-resolution TFT display, and high power.
Now includes the additional features of PEP9000-Performance Enhancement Program
Advanced 32-Bit IF DSP
The FT-DX9000 utilizes a 32-bit floating-point IF Digital Signal Processing system to provide a wide range of interference-suppression and intelligence-recovery features. Included are Variable IF Bandwidth with preset "Narrow" settings, IF Shift, Digital Noise Reduction, and a Parametric Equalizer "Contour" system for enhancing or suppressing sections of the IF passband. On transmit, the bandwidth is adjustable, and the SSB voice parameters may be precisely adjusted using the Three-Band Parametric Equalizer system.
200 Watt and 400 Watt Versions
The FT-DX9000D versions provide 200 Watts of power output, with an internal power supply, while the FT-DX9000MP provides a whopping 400 Watts of power output (the power supply is external on this model). All versions provide continuous adjustment of the PA Bias Level from the front panel, with real-time metering of the bias level and heat sink temperature, for adjustment of the operating conditions between Class AB and Class A. Class A output on the MP version is 100 Watts, while it is 75 Watts on the D and Contest versions during Class A use.
YAESU Exclusive: Full Duplex (for One-Radio SO2R Operation!)
The FT-DX9000 is the only Amateur HF Transceiver to provide Full Duplex capability when operating on two different bands. So, in a contest, you can be calling CQ on 10 meters while simultaneously receiving on 20 meters, looking for new multipliers! This unique capability is found only on the FT-DX9000!
Leading-Edge Receiver Performance
The receivers in the FT-DX9000 are crafted using an ultra-quiet 400 Mhz High-Resolution DDS local oscillator, for extraordinarily low noise close to the carrier. The high-level mixers and robust IF amplifier stages are designed to yield a 3rd-order Intercept Point in excess of +40 dBm, your assurance of high performance on today's crowded bands.
Parametric Microphone Audio Equalizer
Another unique FT-DX9000 feature is the 3-band Parametric Microphone Equalizer, independently adjustable for the front panel (XLR) and rear panel (8-pin round) microphone connectors! The Parametric Equalizer system allows the operator to tailor the transmit passband more precisely than with other equalizer systems. You can adjust the center frequency of each of the three audio passbands, the width of each of these bands, and the amount of boost or suppression you wish to engage within each of these frequency ranges. This allows you to focus available power where you want it, and maximize fidelity according to your voice pattern and the response of your microphone. And because you can adjust the front and rear microphone jacks independently, you can equalize one way for a "DX" mic element on the rear panel, and equalize differently for a "studio" microphone on the front panel mic jack!
Large (6.5-inch) Multi-function TFT Display
The FT-DX9000D's 6.5" TFT display provides a host of operating status and station-management information. Included are a World Map with Sunrise/Sunset/Grey Line display, Logbook, Swept SWR across the band, PA Bias Level, PA Heat Sink Temperature, PA Voltage, Real-Time SWR, Memory Channel listing, Menu listing, and (when using YAESU rotators) indication of the rotation direction and rotation speed, along with presets. A responsive, high-resolution Spectrum Scope lets you watch activity on the band, with custom span and center frequency presets available via the Menu. And, on the rotator page, use your keyboard (not supplied) to input your Latitude and Longitude, and the FT-DX9000 will draw a Great Circle Map of the world, centered on your location! There's also an "Oscilloscope" page, showing TX/RX waveforms as well s a "waterfall" display for weak-signal digital work.
Three Roofing Filters for Outstanding Close-In Dynamic Range
The FT-DX9000 provides three "Roofing" filters in the first IF, allowing you to select (on the fly, or automatically by mode) front-end bandwidths of 15 kHz, 6 kHz, or 3 kHz. Choose the bandwidth that best matches the band occupancy and your operating mode at the time!
- 200W Yaesu FT-DX9000D Transceiver
- FH-2 Remote Control Keypad
- 128MB CF Card
- AC Power Cord
- Microphone Extension Cable (8-Pin to Modular)
- RCA Plug (6 pcs)
- 3.5mm 2-contact plug (2 pcs)
- 3.5mm 3-contact plug (1 pc)
- 1/4-inch 3-contact plug (2 pcs)
- 4-pin DIN plug (1 pc)
- 5-pin DIN plug (1 pc)
- 7-pin DIN plug (1 pc)
- 8-pin DIN plug (1 pc)
- Operating Manual
- Warranty Card
