Cushcraft A148-3S
Huntsville:
Las Vegas:
Distribution Center:

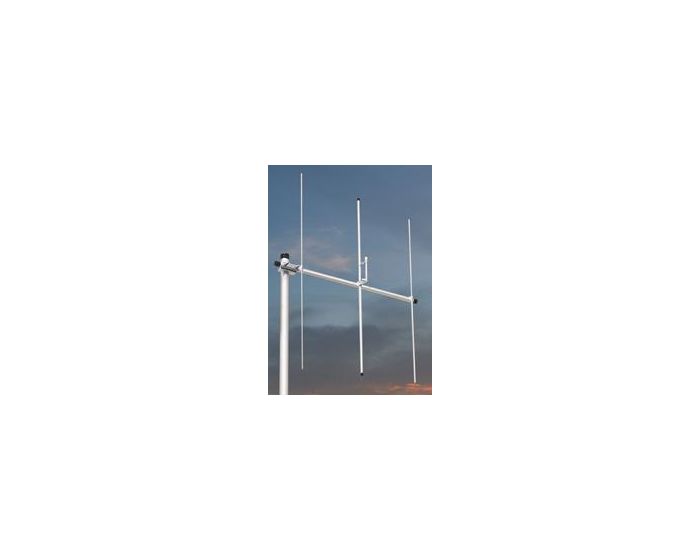

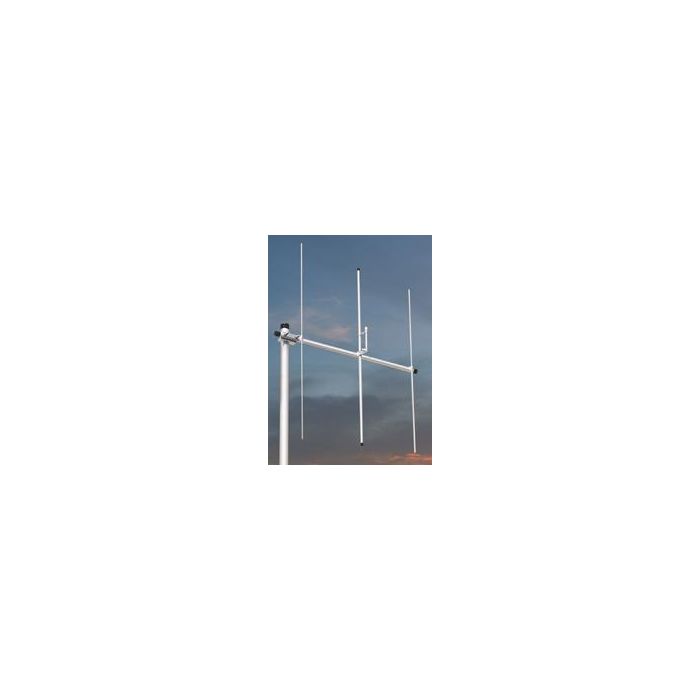

Cushcraft A1483S Yagi, Monoband, 3 Element, 2M, 7.8
|
Model # |
Model # |
Model # |
Model # |
Model # |
Model # |
|
|
Specifications: |
A13B2 |
A17B2 |
A124WB |
A26B2 |
A1483S |
A14810S |
|
Frequency Mhz |
144-148 |
144-145 |
144-148 |
144-148 |
144-148 |
144-148 |
|
Elements per Band |
13 |
17 |
4 |
26 |
3 |
10 |
|
Gain, dBi |
15.8 |
18 |
10.2 |
17 |
7.8 |
13.2 |
|
Front to Back Ratio, dB |
26 |
26 |
19 |
26 |
18 |
24 |
|
Side Lobe Attenuation dB |
>60 |
>60 |
40 |
>60 |
||
|
SWR 1.2:1 Typical2:1 Bandwidth, Mhz |
>4 |
>2 |
4 |
>4 |
>5 |
>4 |
|
Longest Element, in (cm) |
39.75 (101) |
40.75 (103.5) |
40.75 (103.5) |
39.75 (101) |
41 (104.1) |
40.3 (102.4) |
|
Turning Radius, ft (m) |
8.9 (2.7) |
17.25 (5.26) |
4 (1.22) |
10.4 (3.18) |
2.8 (0.8) |
6 (1.8) |
|
Boom Length, ft (m) |
15 (4.57) |
31 (9.45) |
4 (1.22) |
15 (4.57) |
2.8 (0.8) |
12 (3.6) |
|
Electrical Wavelength |
2.2 |
4.5 |
0.5 |
2.2 |
||
|
Wind Load, ft2 (m2) |
1.8 (0.17) |
3.9 (0.36) |
0.34 (0.34) |
4.84 (0.45) |
0.27 (0.02) |
1.21 (0.11) |
|
Max.Power Watts PEP |
1500W |
1500W |
1500W |
1500W |
1000W |
1000W |
|
Weight, lbs (kg) |
6.7 (0.31) |
15.75 (7.14) |
3 (1.36) |
21.5 (9.75) |
1.5 (0.7) |
6 (2.7) |
