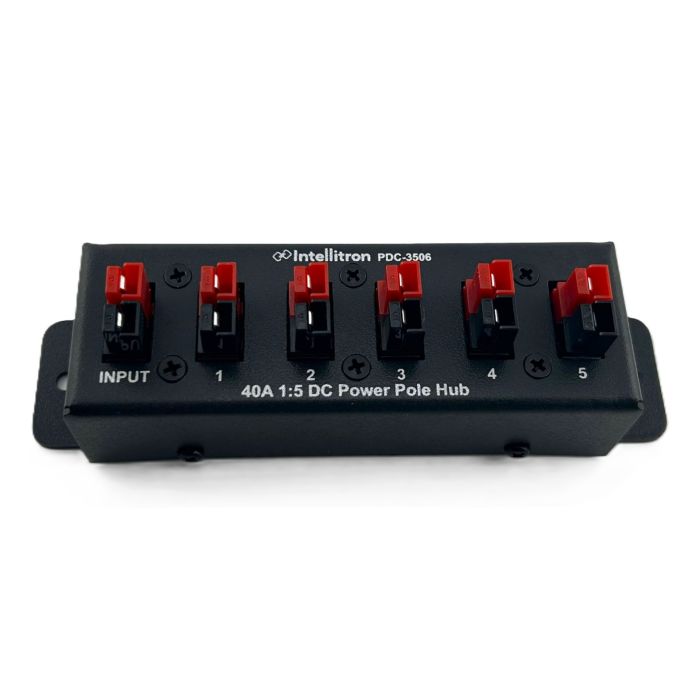

Intellitron PDC-3506 40A 1:5 DC Power Pole Hub

Intellitron PDC-3506 40A 1:5 DC Power Pole Hub

Intellitron: Expertly Built, Economically Priced

The Intellitron PDC-3506 is a rugged and reliable DC power hub designed for amateur radio, mobile installs, and bench setups. This unit allows you to connect up to five radios and accessories to a single DC power source using universal Power Pole connectors, streamlining your setup and keeping it organized.

The PDC-3506 offers flexible and secure installation options. It can be easily mounted using two #6 wood or sheet metal screws. For a tool-free approach, you can use adhesive-backed Velcro or 3M Dual-Lock™ pads, which offer quick and secure mounting without the need for drilling. It is a critical safety warning to not exceed 40A DC total current draw through the hub or 25A DC through any single outlet to prevent damage or fire hazards.

Key Features:

• Power Distribution: Connects up to five radios and accessories to a single DC source.
• Rugged Design: Built for reliable performance in demanding environments.
• Universal Connectors: Uses industry-standard Power Pole connectors.
• Flexible Mounting: Mounts with screws or adhesive pads for secure, non-permanent installation.
• Safety Limits: Maximum total current draw of 40A and a 25A maximum per outlet.

UPC Code: 810106911250
