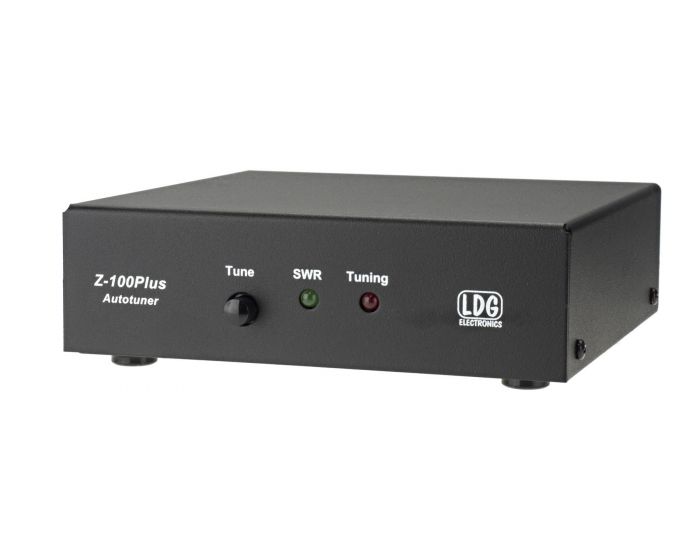

LDG Electronics Z-100PLUS
Huntsville:
Las Vegas:
Distribution Center:
LDG's popular Z-100 economy tuner is now the Z-100Plus. Still small and simple to use, the Z-100Plus sports 2000 memories that store both frequency and tuning parameters. It will run on any voltage source from 7 to 18 volts; six AA batteries will run it for a year of normal use. Current draw while tuning is less than 100ma.
The Z-100Plus now includes an internal frequency counter so the operating frequency is stored with tuning parameters to make memory tunes a blazingly fast 0.1 seconds; full tunes take an average of only 6 seconds.
If you have any questions about which LDG tuner to purchase, take a look here!
Specifications:
- RF Power: 0.1 to 125 watts SSB, CW and digital modes.
- Latching relays for ultra low power consumption
- 2000 memories sorted by frequency.
- 1.8 to 54 MHz coverage (continuous coverage for MARS)
- Tunes 6 to 800 ohms. (16 to 150 on 6M)
- SO-239 in and out connections for dipoles, verticals, beams, G5RV, OCF, Cobra, ect.
- 7 to 18 Volts DC, 100 mA. 3 foot DC power cable included.
- Dimensions: 5.5”L, 5.5”W, 1.5”H. Weight: 16 ounces
