MFJ Window Antenna Feedthru Deluxe Panel - MFJ-4603
Cables are not Included
MFJ Antenna Window Feedthrough Panels
Weather-proof window feedthrough panels bring HF/VHF/UHF antennas, balanced lines, random wire antennas, ground, DC/AC power and Rotator/Antenna Switch Cables into your hamshack without drilling through walls.
MFJ Weather-Proof Antenna Feedthrough Panels mounts in your windowsill. They let you bring all your antenna connections into your hamshack without drilling holes through walls.
Real Western Red Cedar wood is naturally resistant to rot, decay and insects -- lasts longer, maintenance-free. Pitch and resin free for a wide range of beautiful finishes or leave it in its naturally beautiful raw finish.
Simply place in windowsill and close window. Edges sealed by weather-stripping. Seals and insulates against all weather conditions. Gives years of trouble-free service. All are ¾" x 3 ½" x 48" , except for MFJ-4605, which is ¾" x 7" x 48" .
Inside/outside stainless-steel plates bond all coax shields together to ground connection. Stainless steel ground post brings outside ground connection inside.

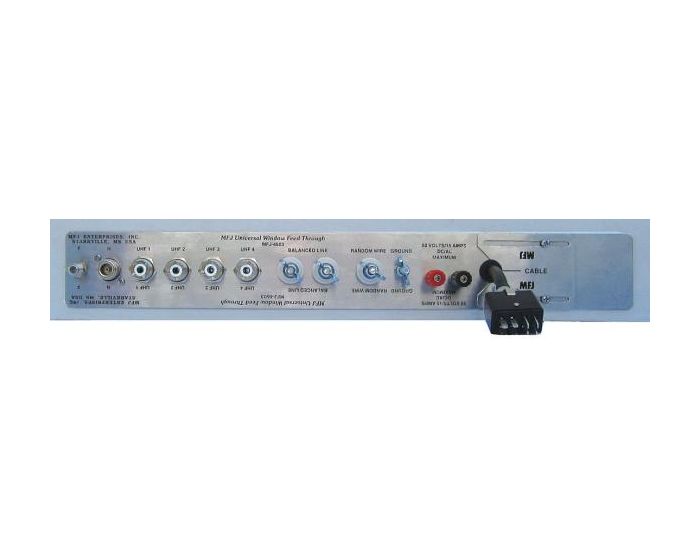

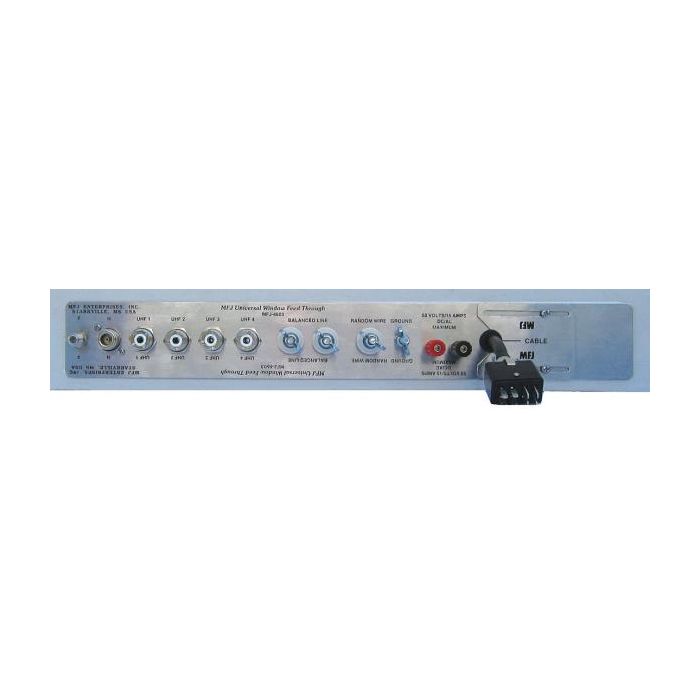

Six Models to choose from MFJ-4603 - MFJ Universal Window Feedthru Panel - Four 50 Ohm Teflon® SO-239 coax connectors let you feed HF/VHF/UHF antennas at full legal power limit.
A 50 Ohm Teflon® coax N-connector lets you use any antenna up to 11 GHz, including 450 MHz, UHF, satellite, moon bounce and 2.4/5.8 GHz Wi-Fi antennas.
A 75 Ohm, 1 GHz F-connector makes it easy to bring in television, Satellite, HD, cable TV and FM radio signals.
A pair of high-voltage ceramic feedthru insulators lets you bring in 450/300 Ohm balanced lines directly to your antenna tuner.
Has random/longwire antenna ceramic feedthru insulator.
5-way binding posts lets you supply 50 Volts/15 Amps DC/AC power to your outside antenna tuners/relays/switches.
Stainless ground post brings in ground connection, bonds inside/outside stainless steel panels together and drains away static charges. MFJ`s exclusive Adaptive Cable Feedthru™ lets you bring in rotator/antenna switch cable, etc. without re-moving connectors (up to 1 ¼" x 1 ⅝"). Adapts to virtually any cable size. Seals out rain, snow, and other adverse weather.
UPC: 650619004793
| Brand: | MFJ |
| Manufacturer's Part Number: | MFJ-4603 |
| GigaParts Number: | ZMF-4603 |
| Part Type: | Coaxial Connector Panels |
| Product Line: | MFJ Universal Window Feedthrough Panels |
| UPC: | 650619004793 |
| SO-239 Connectors: | Yes |
| Number of SO-239 Connectors: | 4 |
| Balanced Line Terminals: | Yes |
| Random Wire Terminal: | Yes |
| Power Terminals: | Yes |
| Type N Connector: | Yes |
| F-Type Connector: | Yes |
| Control Line Connector Included: | No |
| Connector Panel Width: | 48.000 in. |
| Connector Panel Height: | 3.500 in. |
| Connector Panel Depth: | 0.750 in. |
| Quantity: | Sold individually. |
