Open Box Yaesu FTM-400XD SN9C860137. Includes: Original Manual, Original Mic, Power Cable Data Cable, Brackets, Fuses and USB PC Connection Cable.

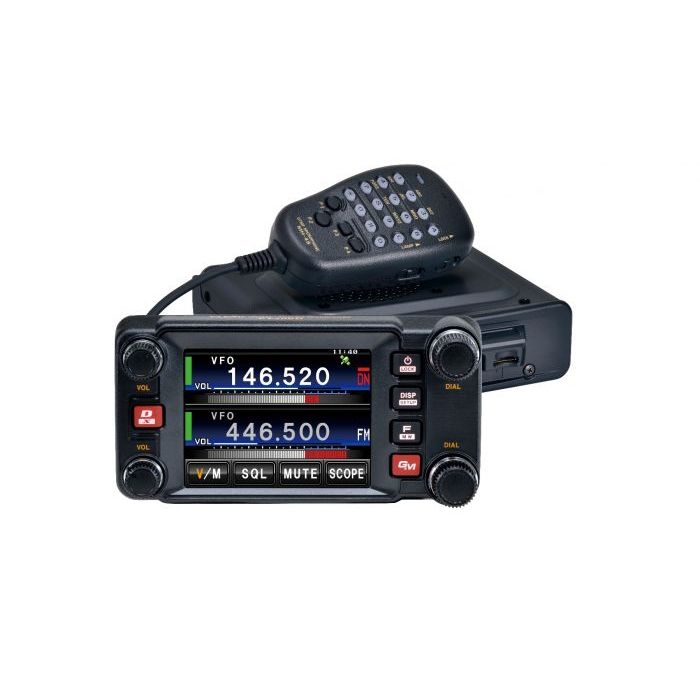

FTM-400XDR C4FM FDMA / FM 144/430 MHz DUAL BAND TRANSCEIVER
The new FTM-400XDR includes an improved GPS receiver that employs the latest in GPS technology providing faster and more accurate satellite searching functionality. These advancements will reduce GPS Time-to-First- Fix (TTF) thereby speeding up navigation and telemetry functions. The FTM-400XDR replaces the previous model, the FTM-400DR.
The FTM-400XDR is the first mobile introduced to be a fully compatable radio partner for use on the YAESU System Fusion Dual Mode system. Compared to other digital modulation schemes within FDMA, C4FM has excellent communication quality (BER: Bit Error Rate characteristics). C4FM is the standard method for professional communication devices in FDMA, and is therefore considered to be the main stream digital communication mode in the future. Download our "Digital Communications Guide for Amateur Radio Operators" available on our web site that explains more about this efficient and reliable digital mode.
The FTM-400XDR operates in three (3) Digital modes and an (1) Analog mode to suit your needs. This feature packed radio is our first Digital Mobile equipped with our new Automatic Mode Select (AMS) function that instantly detects the received signal mode. The AMS function enables stress-free operation and eliminates the need to manually switch between communication modes.
V/D Mode (Voice/Data simultaneous communication mode)
The digital voice signal is transmitted in one half of the band width. Simultaneously the other half of the 12.5 kHz band width channel is used for error correction of the voice signal and other data. By incorporating powerful error correction technology developed for professional communication devices, effective error correction codes provide the advantage of fewer interruptions to conversations. The Clear Voice technology developed for the C4FM FDMA Digital mode provides the ideal balance of error correction and sound quality.
Voice FR mode (Voice Full Rate Mode)
This mode uses the full 12.5 kHz bandwidth to transmit digital voice data. The increased amount of voice data permits high quality voice communication, providing superb sound quality for a “rag chew” with friends.
Data FR mode (High Speed Data Communication Mode)
This high-speed data communication mode uses the full 12.5 kHz bandwidth for data communication. The transceiver automatically switches to Data FR mode when transmitting snapshot pictures, and can be used to transmit large quantities of data at high speed.
Analog FM mode
Analog FM is effective when weak signal strength causes audio drop out in the digital mode, and enables communication up to the borderline of the noise level. Also the use of established Yaesu low power circuit designs provides greater efficiency than the digital modes. This is the typical FM mode used by most typical non-digital handhelds and VHF/UHF mobiles.
