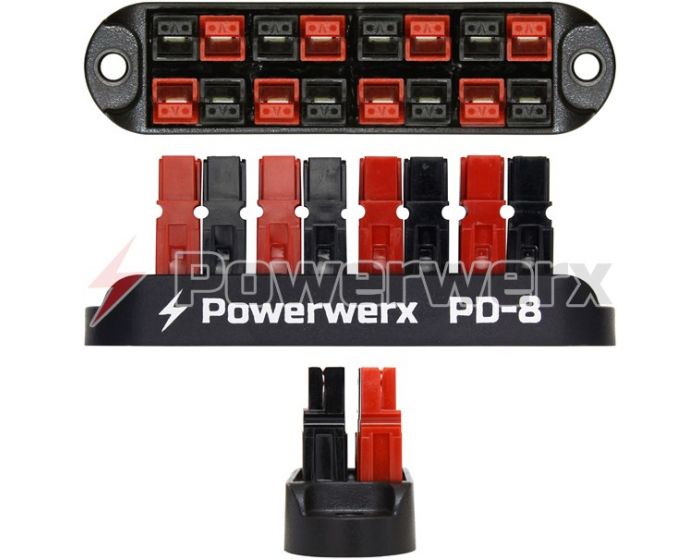

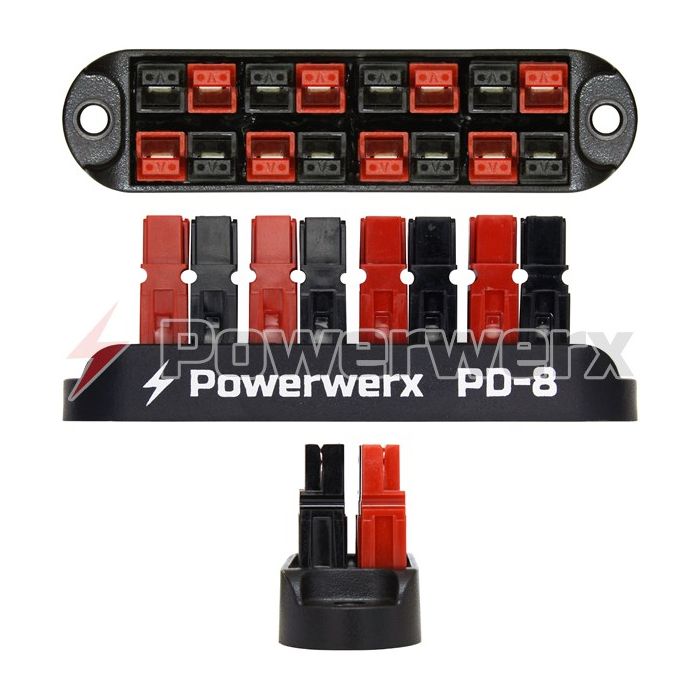

Easy to use 8 position power distribution block for 15/30/45 amp Powerpoles. Convenient for professional installations, at the home or in the field. Proudly designed and manufactured by Powerwerx in the USA.
Easy to use 8 position power distribution block for 15/30/45 amp Powerpole connectors. Convenient for professional installations, at the home or in the field. Proudly designed and manufactured by Powerwerx in the USA.Very Low Loss DesignThick copper bus bar construction with heavy duty crimps provides negligible voltage loss and very low resistance, unlike competitor's products that use thin circuit boards traces with high voltage loss.
Retention ClipsNew innovative design allows each Powerpole connection to use retention clips for secure operation. Prevents unintentional disconnection in any environment.
Mounting HolesMounting holes are provided for permanent, secure mounting on any installation.
Anderson Powerpole ConnectorsCompatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.
High Current CapacityUnique copper bus bar construction provides reliable, safe up to 45 amp continuous operation.
Clean InstallationsSimple design allows all wires to run in a single direction for cleaner and trouble free installation.
Tech SpecsConnections 8 Powerpole ConnectorsCompatibility Mates with all 15, 30 & 45 amp Powerpole ConnectorsMaximum Voltage 58VDCMaximum Amperage 45A (continuous)Mountable 0.18" diameter mounting holes. Fits #8 screw.Construction Rugged ABS plastic base. Sealed internal bus bars.Dimensions 3.75"W x 0.97"D x 1.32"H (95.3mm x 24.6mm x 33.5mm)Weight 0.18 lb (0.08 kg)
