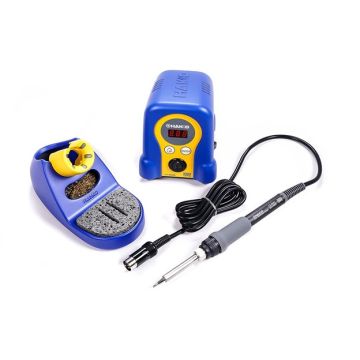

Station
- Power Consumption: 70W, 120V
- Temperature Range: 120° - 899°F (50° - 480°C)
- Temperature Stability: ±1.8°F (1.0°C)
- Temperature Control: Closed-Loop Sensor
- Dimensions W x H x D: 3.9 x 4.7 x 4.7 in. (100 x 120 x 120 mm)
- Weight: 2.6 lbs. (1.2 kg.)
- ESD Safe: Yes
- IPC J-STD-001: Meets or Exceeds requirements
Soldering Iron - Handpiece
- Power Consumption: 65W, 26V
- Tip: T18 Series
- Standard Tip: T18-D16 (shape 1.6D)
- Tip-to-Ground Resistance: < 2 OHMS
- Tip-to-Ground Potential: < 2mV
- Heating Element: Ceramic
- Length of Cord: 3.9 ft. (1.2 m)
- Handpiece Length (w/o cord): 8.5 in. (217 mm) w/T18-D16 tip
- Weight (w/o cord) : 0.1 lb. (46g) w/ T18-D16 tip
