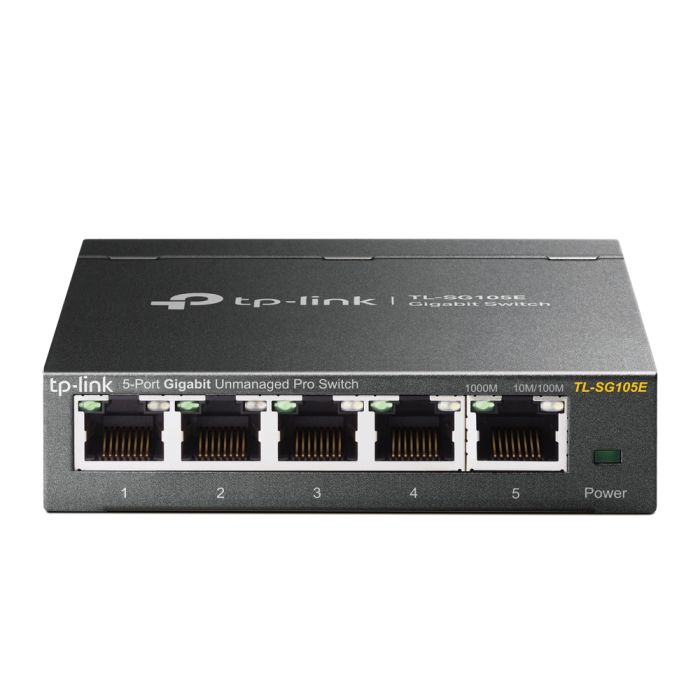

TP-LINK 5-Port Gigabit Smart Switch TL-SG105E

SKU
NH0482
$26.99
Add to Wish List
Ready to Ship!

TP-LINK 5-Port Gigabit Easy Smart Switch

The TP-Link networking switch features 5 10/100/1000Mbps RJ45 ports, providing high-speed connectivity for devices. It follows a plug-and-play design, requiring no configuration, making it easy to set up and use. The switch is housed in a durable metal casing, ensuring superior quality and a professional appearance. Intelligent management is possible through a web user interface and a downloadable utility, allowing users to customize and optimize their network settings. Additionally, the switch incorporates green technology to reduce power consumption, contributing to energy efficiency and environmental sustainability. This combination of features makes the switch a reliable and user-friendly solution for networking needs.

Purchase your TP-LINK 5-Port Gigabit Easy Smart Switch from GigaParts today.

UPC:  0845973022037

  • 5 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption
HARDWARE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 5 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm)
Max Power Consumption 2.82 W (220 V/ 50 Hz)
Max Heat Dissipation 9.62 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2 K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
SOFTWARE
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
  • TL-SG105E
  • Power Adapter
  • Installation Guide
  • Rubber Feet
