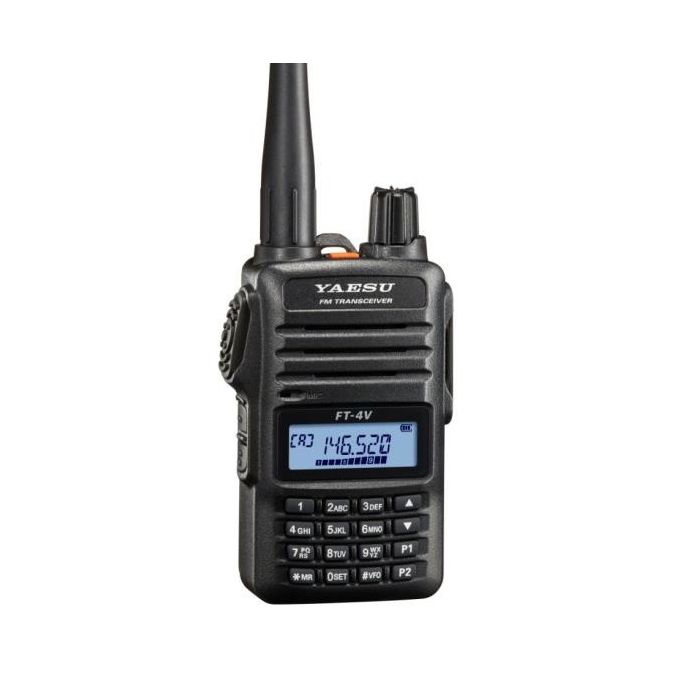

Yaesu FT-4VR 5W VHF HT
The new Yaesu FT-4VR VHF Transceiver is the ultimate in compact designed (W 2.1” x H 3.5” x D 1.2”) handheld transceiver, providing up to 5W of stable and reliable output power thanks to Yaesu’s integration of highly-efficient Bridged Transless (BTL) amplifier technology. This rugged handheld transceiver has a 1.4-inch Front Speaker that delivers 1W of powerful clear and crisp intelligible audio.
The FT-4VR includes an extraordinarily robust package of features and specifications such as: Over 15 hour operating time (5:5:90 Duty Cycle)* with the supplied 1,750mAh Li-ion Battery pack; 3.5 hour rapid charger included; Selectable Frequency Step from 5kHz; two quick programmable keys for quick access to favorite functions; 200 memory channels; 3 Home Channels** and 10 pairs PMS channels; two user-settable different frequencies (one for RX another for TX) in one memory channel; versatile scanning capacities such as VFO scan, Memory scan, Programmable Memory scan (PMS), Memory Bank Scan and Dual Receive; Lockout Capacities for Keypad/PTT Lockout; VOX Operation with the optional VOX headset; Cloning feature allowing the memory and configuration data from transceiver to transceiver with the optional cloning cable; PC Programmable with optional programming cable; FM Broadcast Receiver; CTCSS/ DCS Operation; and Time-out-Time (TOT) to name a few
- VHF Single Band FM Handheld Transceiver
- Ultimate Compact Design, Measuring W 2.1” x H 3.5” x D 1.2” (52 x 90 x 30 mm)
- One Watt Powerful Audio Output and Clear Audio from the 1.4” Front Speaker
- 5 Watts of Reliable RF Power within a Compact body
- Three Selectable TX Power settings (5 W (High)/2.5 W (Middle)/0.5 W (Low))
- Over 15 hours Operating time with Supplied 1,750 mAh Li-ion Battery pack *1
- 3.5-Hour Rapid Charger (SBH-22) Included (Using SBR-28LI)
- QRK (Quick Recall Key) : Two User Programmable Keys for Quick Access to Favorite Functions
- One-touch Alarm and Quick HOME Channel Access for Emergency Signaling
- Versatile Scanning Capabilities: VFO Scan, Memory Scan, Programmable memory scan (PMS), Memory bank scan, and Dual receive
- Large-capacity 200 memory channels
- 3 home channels and 10 pairs of PMS memory channels
- Selectable Frequency Steps(5/10/12.5/15/20/25/50/100 kHz )
- Split Memory(Two different frequencies(TX/RX) )
- WX Channels with "Severe Weather" Alert
- VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)
- PC Programmable with Optional Programming Cable (SCU-35)
- Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)
- FM Broadcast Receiver Equipped
- ARTS (Automatic Range Transponder System)
- DTMF Operation
- CTCSS/DCS Operation
- Busy Channel Lock-Out (BCLO)
- Battery Saver Function
- Automatic Power-Off (APO) Feature
- Transmitter Time-Out-Timer (TOT)
*1 (Tx) 5 : (Rx)5 : (Standby) 90 Duty Cycle
Frequency Ranges:
- RX 136 - 174 MHz
- FM Broadcast 65 - 108 MHz
- TX 144 - 148 MHz
Circuit Type: Direct-Conversion
Modulation Type: F2D, F3E, F2A
RF Power Output: 5 W/2.5 W/0.5 W
AF Audio Output: 1 W (Max power)
Case Size (W x H x D): 2.1” x 3.5” x 1.2” (52 x 90 x 30 mm) without Knob
Weight (Approx.): 8.82 oz (250 g) with SBR-28LI and Antenna
Yaesu FT-4VR Single Band Transceiver
Antenna (SRA-16N)
7.4 V 1,750 mAh Lithium-ion Battery Pack (SBR-28LI)
Rapid Charger (SBH-22)
AC Adapter (SAD-20)
Belt Clip (SHB-18)
Operating Manual
