Yaesu FT-710 AESS HF/50MHz 100W SDR Transceiver

SKU
ZYS-FT-710
Rating:
90 % of 100
$999.95
Used & Open-Box: from $979.29
Add to Wish List

SAVE $150.00

Regular Price: $1,149.95

$150.00 Instant Rebate (Exp. 06-18-2023)

Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

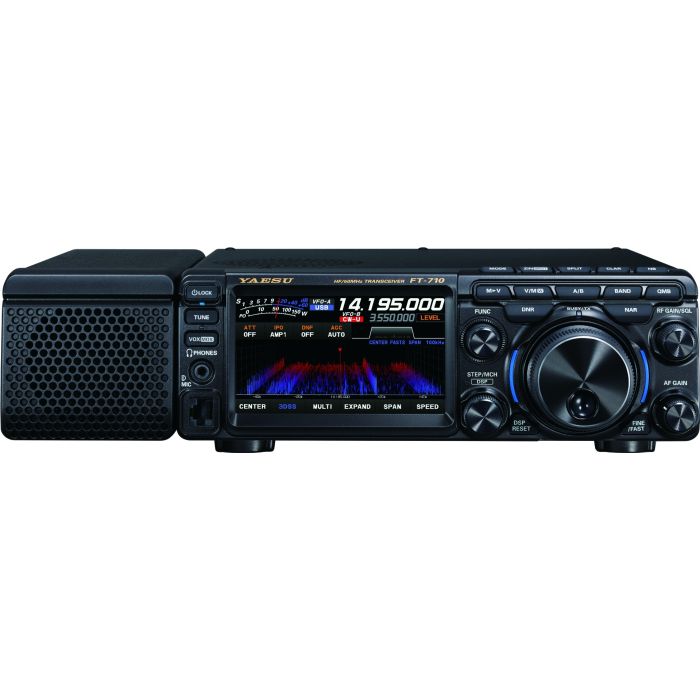

Yaesu FT-710 AESS HF/50MHz 100W SDR Transceiver

The new FT-710 AESS is a compact design yet provides 100W output, utilizing the advanced digital RF technology introduced in the FT-DX101 and FT-DX10 series.

A few of the remarkable features of the new FT-710 AESS are:

  • Yaesu unmatched SDR technology emphasizes the receiving performance
  • Band Pass Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
  • RF Front-End design with the 250MHz HRDDS (High Resolution Direct Digital Synthesizer) enables phenomenal multi-signal receiving characteristics
  • QRM rejection by the dual core 32-bit high speed floating decimal point DSP for SHIFT/WIDTH/NOTCH/CONTOUR/APF/DNR/NB and 3-stage parametric equalizer
  • High Resolution 4.3 inch TFT color touch panel display
  • 3DSS (3-Dimensional Spectrum Stream)
  • VMI LED (VFO Mode Indicator) placed around the VFO dial shows the current operating mode (VFO-A, VFO-B, Memory Mode and Clarifier/Split Operation)
  • "PRESET" Mode Function most suitable for FT8 Operation
  • AESS: Acoustic Enhanced Speaker System with SP-40 creates the high-fidelity audio output
  • External Display Connection Terminal (DVI-D)
  • Built-in High Speed Automatic Antenna Tuner with 100 Channel Memory
  • Supports the FC-40 Auto Antenna Tuner
  • SD Memory Card can be used to save the communication record, transceiver setting, the memory contents, screen capture images and to update the firmware
  • Two (2) USB Ports (Type-A and Type-B)
  • Other essential features such as CW ZIN and SPOT, IPO (Intercept Point Optimization), and Remote Operation with Network Remote Control System

Purchase your Yaesu FT-710 AESS HF/50MHz 100W SDR Transceiver at GigaParts today!

UPC Code: 788026179886

  • HF/50MHz band 100W Compact SDR Transceiver
  • SDR circuit configuration emphasizes Receiving Performance which is enabled by the same high-resolution A/D converter and FPGA used in YAESU high-end SDR transceivers.
  • Powerful RF Front-End and Low Noise Oscillator System enables Phenomenal Multi-Signal Receiving Characteristics*
    • RMDR: 113dB+
    • BDR: 127dB+
    • 3rd IMDR: 102dB+
    • TX Phase Noise: -143dBc/Hz

*Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation

*TX Phase Noise: 100W, CW mode

  • Multi-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
  • Built-in High-Speed Automatic antenna tuner with 100 channel memory
  • Effective QRM rejection afforded by Dual-core 32-bit high speed floating decimal point DSP
  • AESS (Acoustic Enhanced Speaker System) with supplied SP-40 speaker to create High-Fidelity audio output
  • High Resolution 4.3-inch TFT Color Touch Panel Display
  • 3DSS, real-time 3D Dimensional Spectrum Stream presentation
  • VMI (VFO Mode Indicator) shows the current operating mode (VFO-A, VFO-B, Memory Mode, and Clarifier/Split operation) at a glance
  • “PRESET” Mode functions most suitable for FT8 operation
  • Equipped with External Display terminal (DVI-D)
  • Two (2) USB Ports (Type-A and Type-B)
  • SD Memory Card Slot
  • Support for FC-40 Auto Antenna Tuner
  • Remote Operation with Network Remote Control System (future feature)
TX Frequency Range: 1.8MHz band - 50MHz band (Amateur bands only)

RX Frequency Range: 30KHz - 75MHz (Operating)
  1.8MHz - 29.699999MHz (Specified performance, Amateur bands only)
  50MHz - 53.999999MHz (Specified performance, Amateur bands only)

Emission Modes: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM)

Supply Voltage: DC13.8V±15%

Power Output: 5 - 100W (5 - 25W AM Carrier)

Dimensions (W x H x D): 9.4" x 3.1" x 9.7"

Weight (approx): 9.92lbs

UPC: 788026179886
  • External Speaker SP-40
  • Microphone SSM-75E
  • DC Power Cable with Fuse
  • Spare Fuse
  • Operating Manual
