Hybrid Portable Mini HF Antenna System with 60ft Wire

Hybrid Portable Mini HF Antenna System with 60ft Wire

The CHA HYBRID SERIES Base is designed to enhance the capabilities of the common HF radio application by allowing faster tuning operation across the HF bands including MARS/CAP frequencies. This antenna base has an integral broadband impedance matching network (transformer 5:1) allowing broadband antenna tuning. An external antenna tuner is required to provide a low VSWR. The unit is water resistant.

Can be used with the CHA MIL, CHA MIL EXT and the CHA CAP-HAT.

Specifications:

Frequency: 6M - 160M

Power: 800W SSB or 250W CW.

Mounting Configuration: 3/8-24 Thread

Weight: 1.8lbs

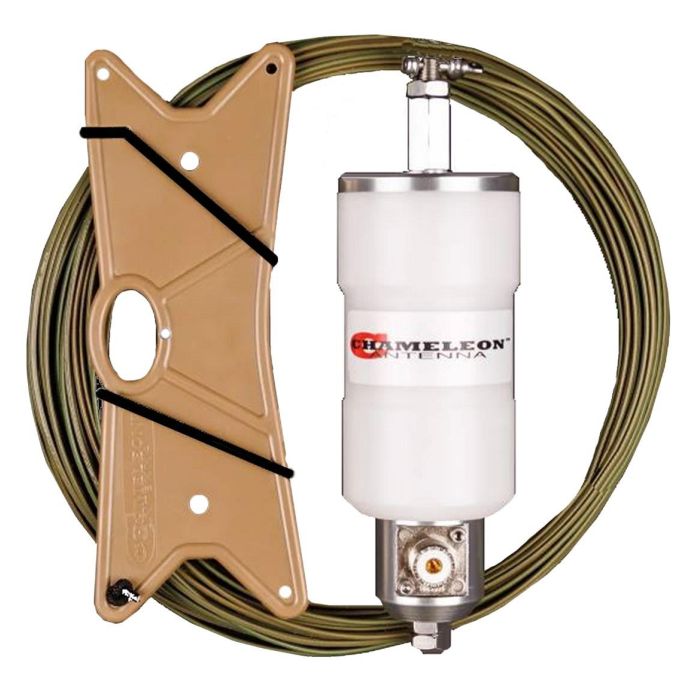

The antenna system consists of:

1 X HYBRID Matching Unit Base

1 X 60' Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire

Stainless Steel Hardware
