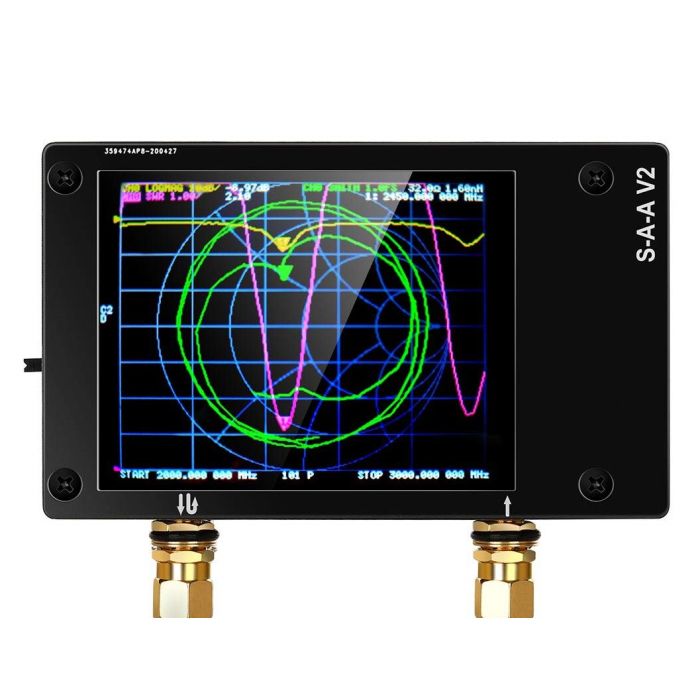

S-A-A-2 NanoVNA V2 Analyzer

• Upgraded Version: Not only testing standing wave impedance of the antenna, can also debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier. Flip Display,For your using convenience, you can flip the display as the following steps: Menu - Display - Flip Display
• The SAA-2N/NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture, the SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device.
• Transmission Mearsure S21: 70dB(50KHz-1.5GHz), 60dB(1.5GHz-3GHz). Reflection Measure S11: -50dB(50KHz-1.5GHz), -40dB(1.5GHz-3GHz); Antenna Analyzer: 1.005(50KHz - 1.5GHz), 1.02(1.5GHz-3GHz)
• PC Connection: the device can be controlled by PC via VNA-QT software,supported for Linux, Windows (7+), Mac OS planned. It also support Nanovna-Saver for extracting the data for display on a computer, and for saving to Touchstore files.
• 2.8 Inch Display
• SMA Connectors

Includes GigaParts EXCLUSIVE 1 year warranty!
