Bambu Lab H2C Multi-Material 3D Printer: Vortek Hotend Swap System, Active Heated Chamber, and AI Error Detection

The Bambu Lab H2C is an uncompromising, multi-material 3D printer featuring the innovative Vortek Hotend Change System for minimal purge waste and support for up to 24 colors/materials (with AMS). With a 65°C active heated chamber, 350°C hotends, PMSM servo extruder, and real-time AI error detection, the H2C is built as a production powerhouse for high-performance and multi-color printing.

The Uncompromising Multi-Material Solution: Bambu Lab H2C
The Bambu Lab H2C represents a revolution in multi-material 3D printing. Engineered for uncompromising quality, speed, and efficiency, the H2C allows creators to print complex, multi-color, and multi-material components in a single, seamless job. Say goodbye to assembly and painting, and start printing parts with integrated structural and flexible materials.

Introducing the Vortek Hotend Change System
At the core of the H2C is the game-changing Vortek Hotend Change System. Unlike traditional systems that require lengthy purging to flush out old filament, the H2C automatically swaps the entire hotend unit.

• Minimal Purge Waste: This intelligent hotend-swapping significantly reduces the waste typically generated by purge towers in multi-color printing, saving both time and material.
• Massive Material Capacity: Connect parallel Automatic Material System (AMS) units to support up to 24 colors or materials in one print job, with the Vortek system managing up to six dedicated, high-speed induction hotends.
• Lightning Fast: Industry-leading induction heating brings the new hotend to 350°C in approximately 8 seconds, drastically cutting material change time

Built for Performance and Precision
The H2C is designed to handle demanding engineering materials:

• Active Heated Chamber: The 65°C actively heated chamber minimizes warping and improves layer adhesion, essential for high-performance filaments.
• Servo Extruder Power: A Permanent Magnet Synchronous Motor (PMSM) servo extruder delivers up to 10 kg of extrusion force—a 70% increase over standard stepper motors—ensuring stable, high-flowrate extrusion at extreme speeds.
• 50 µm Accuracy: Achieve ultra-fine motion accuracy of less than 50 μm, resulting in smoother surfaces and cleaner, sharper edges.

Intelligent Monitoring and Safety
The H2C operates with unmatched confidence thanks to a sophisticated sensor and vision system:

• AI Error Detection: A quad-camera computer vision system with 59 integrated sensors runs a proprietary neural algorithm for real-time diagnostics, automatically detecting and mitigating common failures like spaghetti, nozzle clumping, and air printing.
• Triple-Stage Air Filtration: Essential for printing high-temp engineering filaments, the system includes a G3 pre-filter, an H12 HEPA filter, and an activated carbon filter to minimize harmful particulates and odors.
• Fire-Retardant Safety: The entire chamber is constructed from UL94 V-0 grade, fire-retardant material for passive safety assurance.

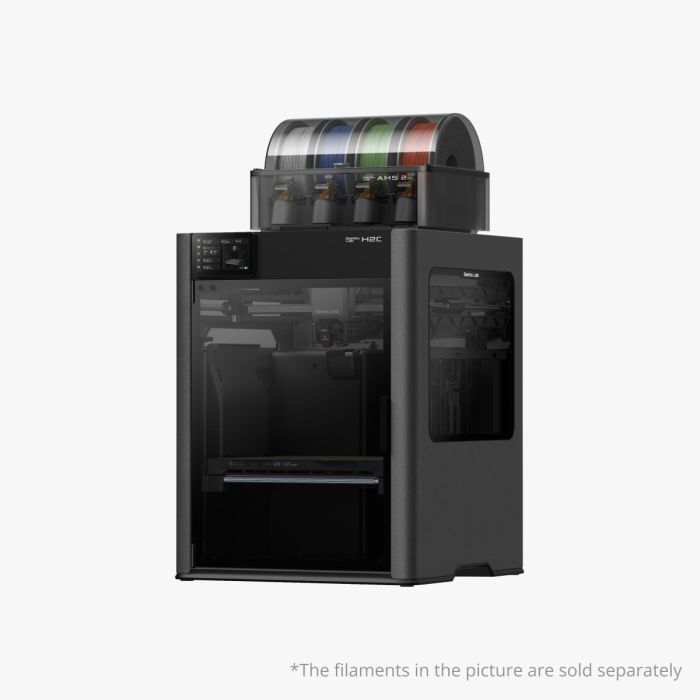

Bambu Lab H2C AMS Combo 3D Printer

Bambu Lab's upcoming H2C 3D printer promises to be the solution to Zero Waste, Multi-Material printing. While not much is known yet, you can watch the video in the image gallery above or by clicking here.

Overview

Bambu Lab H2C is an advanced multi-material, multi-color 3D printer designed to reduce purge waste, increase print efficiency, and produce stunning, ready-to-display models straight off the bed. With up to seven materials per print, automated hotend swapping, a heated enclosure, and AI-driven diagnostics, the H2C is built for serious creators and production environments.

Key Features

• Up to 7 Materials Per Print – Six hotends + one support/nozzle slot for multi-color or multi-material designs.
• Ultra-Low Purge Waste – Intelligent Vortek hotend-swapping eliminates the need for traditional purging.
• 8-Second Induction Heating – Rapid temperature changes reduce wait times and accelerate multi-material workflows.
• Fully Automated Filament Changes – Seamless AMS integration for hands-free filament switching.
• 65°C Active Heated Chamber – Ideal for engineering-grade materials.
• Real-Time AI Monitoring – 59 sensors and a quad-camera system detect print anomalies instantly.
• Vision Encoder Motion Accuracy – Achieves <50 μm precision.
• Dedicated Material-Specific Hotends – Store filament info and automatically match settings per hotend.
• Industrial Safety & Enclosure – Fully fire-retardant chamber and multi-stage filtration system.

Revolutionary Multi-Color Printing

Print fully colored models without painting — from intricate figures to multi-tone functional parts. The H2C uses a six-color hotend array plus a seventh nozzle for support or an additional color.

Purge-Saving Performance Examples

Geminaraptor Model

• Purge Waste: H2C: 532g · H2D: 3032g · H2S: 3917g
• Print Time: H2C: 7d 3h 34m · H2D: 10d 21h 12m · H2S: 12d 8h 56m

Bambu Lab Racer

• Purge Waste: H2C: 522g · H2D: 2051g · X1C: 2953g
• Print Time: H2C: 5d 8h 54m · H2D: 8d 7h 2m · X1C: 11d 7h 57m

Blériot Rider – XI

• Purge Waste: H2C: 185g · H2D: 695g · X1C: 768g
• Print Time: H2C: 1d 10h 2m · H2D: 2d 6h 59m · X1C: 2d 20h 56m

Multi-Material Printing

The H2C supports advanced multi-material workflows, including TPU, PA6-GF, PC FR, and PLA. Print flexible joints, impact-resistant parts, rigid structural components, and colorful designs in one piece.

Examples

Heavy Second Core Mecha

• TPU Joints: Integrated flexible ball joints printed in a single run.
• Main Body: PLA Matte.

Aero Mobius Drone Frame

• PA6-GF: High structural rigidity.
• TPU for AMS: Shock absorption.
• PC FR: Fire-retardant components.

Multi-Color Sneaker

• TPU 90A: Flexible body.
• TPU for AMS: Color accents and torsional rigidity.

Vortek Hotend Change System

The Vortek system swaps entire hotends instead of purging filament, delivering cleaner transitions and dramatically reduced waste.

• Automatic Hotend & Filament Matching – Each hotend stores filament data for instant recognition.
• Parallel AMS Support – Up to 24 materials in a single print.
• Contactless High-Frequency Connectors – No pins; immune to oxidation and unstable contact.
• Up to 6 Hotends Installed – Small footprint without reducing build volume.

Performance & Precision

• 70% More Extrusion Force via PMSM servo extruder.
• Real-Time Jam & Grinding Detection (20 kHz sampling).
• Ultra-Fine Motion Accuracy: <50 μm with Vision Encoder.*
• Adaptive Pressure Advance Calibration for sharp edges and smooth surfaces.

Engineering Filament Support

• 350°C Nozzle Temperature across all seven hotends.
• 65°C Active Heated Chamber for minimized warping.
• Three-Stage Filtration: G3 pre-filter · H12 HEPA · Activated carbon.

AI-Powered Print Control

• Nozzle Camera: Detects clogs, spaghetti, air printing, and deviations.
• Quad-Camera Vision System: Full build-plate monitoring.
• Pre-Flight Checklist: Automatic surface and parameter verification.

Safety & Connectivity

• UL94 V-0 Fire-Retardant Enclosure for maximum safety.
• Closed-Loop Temperature Control across all heaters.
• Cloud, Offline, or Local Operation for secure workflows.
• Developer Mode: MQTT access for advanced integration.*

Notes & Disclaimers

• Print time & purge waste data based on Bambu Studio calculations.
• Vortek performance assumes six induction hotends of the same diameter.
• Motion Accuracy Enhancement requires optional Vision Encoder.
• Fire-retardant chamber built with UL94 V-0 materials.
• 8-second heating time measured with Bambu PLA Basic.
• Initial purge is required when loading new filament for the first time.
