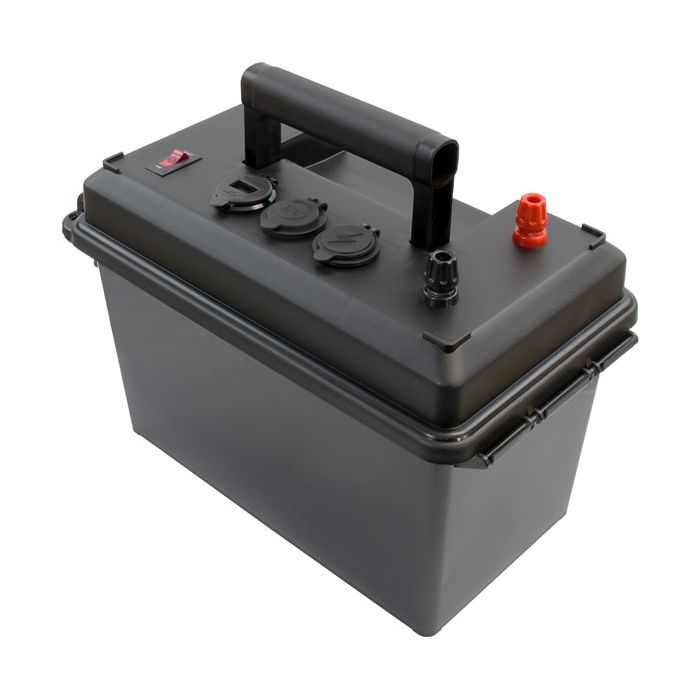

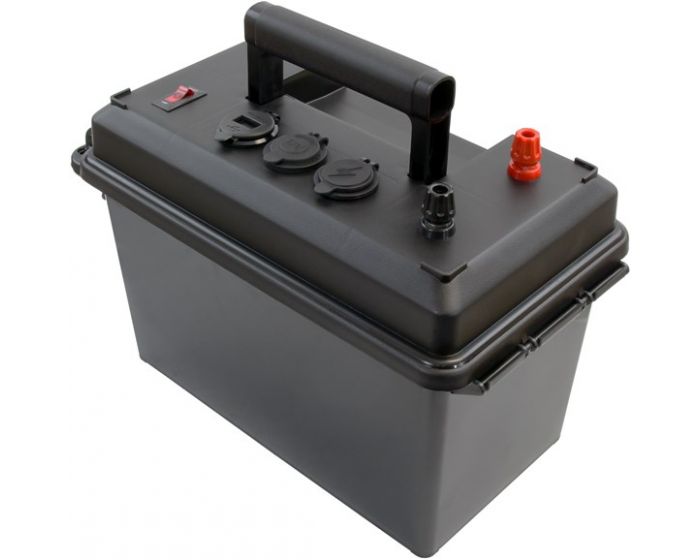

Portable Power Box for 12-40Ah Bioenno Batteries
Huntsville:
Las Vegas:
Distribution Center:
Applications:
Charging smartphones, tablets, radios and computers
Powering two-way radios and DC powered electronics
Emergency and Off Grid portable power
Portable power for telescope accessories
DC Power up to 40 amps total (depending on battery)
Main on/off 15A backlit circuit breaker switch to turn your devices on/off and stop parasitic loads:
(2) Fast USB charging ports with cover (5V @ 2.4A per port)
Battery status blue digital volt meter
(1) Automotive 12V socket with cover (15A maximum)
High current DC outputs (non-switched):
(2) Anderson Powerpole connectors with cover
Heavy duty M6 binding posts accepts 1/4" ring terminals, banana plugs or bare wire
Battery is protected with an inline 40A or 25A ATO blade fuse
Specifications:
Available Bioenno LiFePO4 Battery Options:
BLF-1240A (40Ah), BLF-1230A (30Ah), BLF-1220A (20Ah), BLF-1215A (15Ah), BLF-1212A (12Ah)
Battery Connections: SB50 Gray Anderson Powerpole Connector and (with 40A inline fuse) & 30A Anderson Powerpole Connector (with 25A inline fuse)
Maximum Peak Discharge: 12Ah = 20A, 15AH = 25A, 20Ah = 25A, 30/40Ah = 40A
Nominal Battery Voltage: 12VDC
Exterior Dimensions (including binding posts): 9.75 in. H x 7.375 in. W x 13.5 in. L (247.7 mm x 187.3 mm x 342.9 mm)
Maximum Interior Dimensions: 6 in. H, 5.94 in. W x 11.0 in. L 152.4 mm x 150.9 mm x 279.4 mm). Additional height is available in limited areas due to the shape of the lid and wire harness, up to 6.5 in. (165.1 mm).
Main on/off 15A backlit circuit breaker switch to turn your devices on/off and stop parasitic loads
Heavy duty M6 binding posts accepts 1/4" ring terminals, banana plugs or bare wire
Battery is protected with an inline 25A ATO blade fuse
Available Bioenno LiFePO4 Battery Options: BLF-1212A (12Ah), BLF-1215A (15Ah), BLF-1220A (20Ah)
Nominal Battery Voltage: 12VDC
Battery Connection: 30A Anderson Powerpole Connector (with 25A inline fuse)
Maximum Peak Discharge: 12Ah = 20A, 15Ah = 25A, 20Ah = 25A
Exterior Dimensions (including binding posts): 9.75 in. H x 7.375 in. W x 13.5 in. L (247.7 mm x 187.3 mm x 342.9 mm)
Maximum Interior Dimensions: 5.88 to 7.00 in. H x 5.94 in. W x 11 in. L (149.2 to 177.8 mm x 150.9 mm x 279.4 mm)
