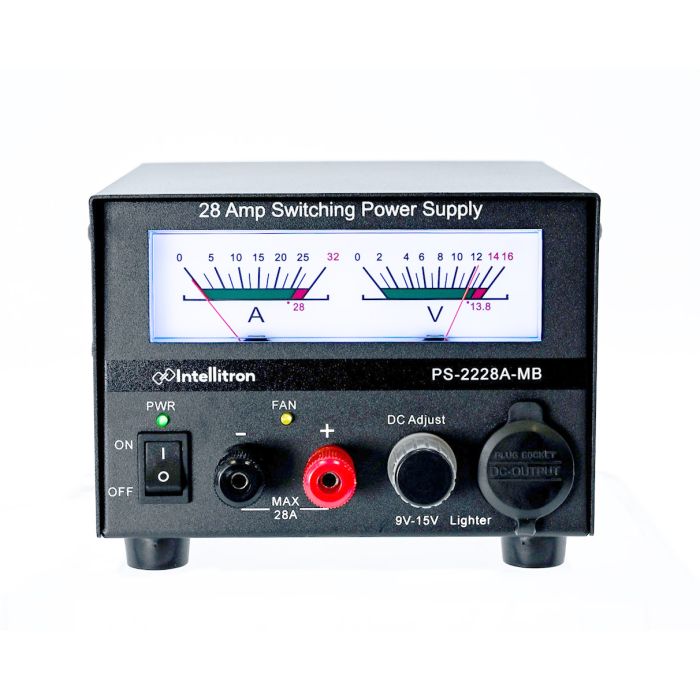

Intellitron PS-2228A-MB 28A Variable Voltage Switching Power Supply

Intellitron PS-2228A-MB 28A Variable Voltage Switching Power Supply

Intellitron: "Expertly Built, Economically Priced"

The Intellitron PS-2228A-MB is designed for the serious operator who requires precise control and monitoring. It offers an Adjustable Voltage Range from 9 VDC to 15 VDC, providing the flexibility needed to match the requirements of various radio and communications equipment. Powering your transceiver during peak activity is no problem, thanks to a strong Current Range of 28-Amp Surge (up to 5 minutes) and an impressive 25 Amps Continuous Duty, ensuring consistent performance during long transmissions or high-power operations.

A stand-out feature of this model is the LED-backlit meters, which offer separate displays for Voltage and Amperage. This allows you to monitor both crucial parameters simultaneously and accurately at a glance, eliminating the need to switch displays. Connections are made secure and versatile via the Five-Way high-current terminal binding posts for heavy-duty connections, along with a convenient 12VDC socket for lighter, accessory-type loads. The unit ensures the safety of your valuable gear with built-in Short circuit and over voltage protection. Furthermore, the unit delivers exceptionally clean power, boasting a Low peak-peak ripple of less than 0.3%, crucial for minimizing noise and maintaining signal integrity during your QSOs. At a manageable weight of 4 lbs and compact dimensions of 6.7 x 5.7 x 4.3 inches, it fits easily into any operating position. For maintenance convenience, the unit includes External fuse access.

Key Features:

• Dedicated Dual Metering: Separate LED-backlit meters for simultaneous monitoring of Voltage and Amperage.
• Precision Output: Precision regulation of output voltage with low ripple of less than 0.3%.
• Versatile Connections: Includes Five-Way high-current terminal binding posts and a handy 12VDC socket.
• Safety Features: Integrated Short circuit and over voltage protection for peace of mind.

Core Specifications:

• Continuous Current: 25 Amps (28-Amp Surge)
• Voltage Range: Adjustable, 9-15 VDC
• Dimensions/Weight: 6.7 x 5.7 x 4.3 inches and 4 lbs

Don't settle for instability; power your shack with regulated, reliable performance. The Intellitron PS-2228A-MB offers the visibility and continuous power you need for successful radio operation. Ensure your transceiver is operating at peak efficiency.

Click to purchase the Intellitron PS-2228A-MB today at GigaParts.com and guarantee clean power for your next DX contact!

UPC Code: 810106911083
