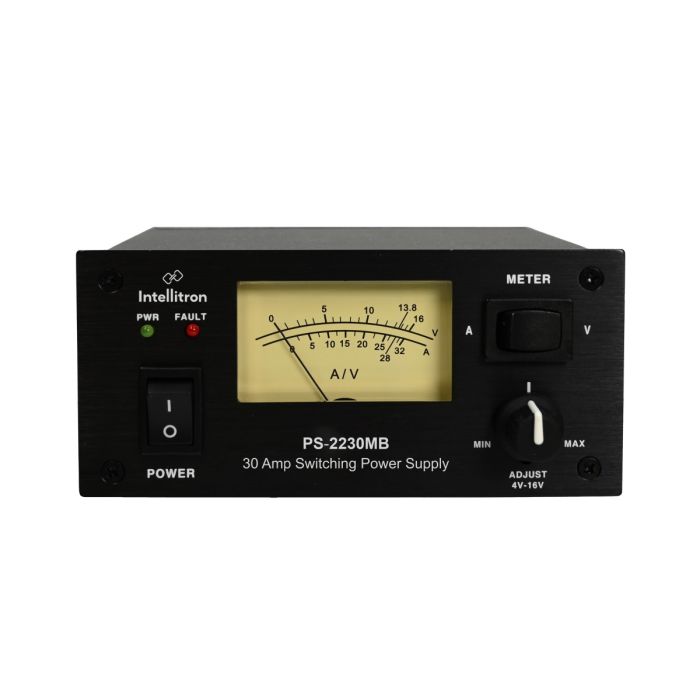

Intellitron PS-2230MB 30 Amp Variable Voltage Switching Power Supply

Intellitron PS-2230MB 30 Amp Variable Voltage Switching Power Supply

Intellitron: "Expertly Built, Economically Priced"

The Intellitron PS-2230MB provides the reliable DC power your equipment needs without introducing signal-degrading RF noise. The supply offers a Variable Voltage Range from 4-16 VDC, giving you the flexibility to power various devices beyond just your main rig. A crucial feature for ham radio use is the control detent at 13.8VDC, allowing for quick and accurate setting of the standard operating voltage for most transceivers. Monitoring your power usage is simple and precise with the LED-backlit meter, which is switchable between displaying Volts and Amps, so you always know your draw and output at a glance.

For your high-power needs, the PS-2230MB boasts a robust Current Range of 30-Amp Surge (up to 5 minutes) and 25 Amps Continuous Duty, easily handling the peak transmission currents of most mobile and compact base transceivers. Connections are secure and robust thanks to the Five-Way high-current terminal binding posts, accommodating everything from bare wire to banana plugs. Safety is paramount; the unit includes Over-voltage protection and a smart Automatic 30A shutdown for over-current faults, complete with a manual reset and a clear LED fault indicator. The selectable 110/220 VAC input makes this power supply incredibly versatile for use around the globe or in different operating environments. All this capability is housed in an incredibly light unit, weighing just 3 lbs / 1.35 kg, and kept cool by an Ultra-quiet Thermo-controlled fan that only engages when needed, ensuring your shack remains a peaceful environment, free from distracting fan noise.

Key Features:

• Adjustable, Variable DC Output: Range of 4-16 VDC with a convenient detent at 13.8VDC for standard transceiver operation.
• Dual-Function Metering: LED-backlit meter switchable Volts/Amps for immediate power status checks.
• Robust Connectivity: Five-Way high-current terminal binding posts for reliable, secure connections.
• Thermo-Controlled Cooling: Ultra-quiet fan operation to maintain a low-noise environment in your shack.

Core Specifications:

• Continuous Current: 25 Amps (30-Amp Surge)
• Regulation/Input: Switchable 110/220 VAC input (47-63 Hz)
• Lightweight Design: Only 3 lbs / 1.35 kg
• Dimensions: 6 (W) x 2-3/4 (H) x 8-5/8 (L) inches

Don't compromise your signal quality or shack reliability with subpar power. The Intellitron PS-2230MB is the modern, feature-rich power supply that will keep your rig running strong and your QSOs clear. Upgrade your shack today with the ideal combination of power, precision, and portability.

Click to Buy the Intellitron PS-2230MB Now at GigaParts.com and experience the difference clean power makes!

UPC Code: 810106911144
