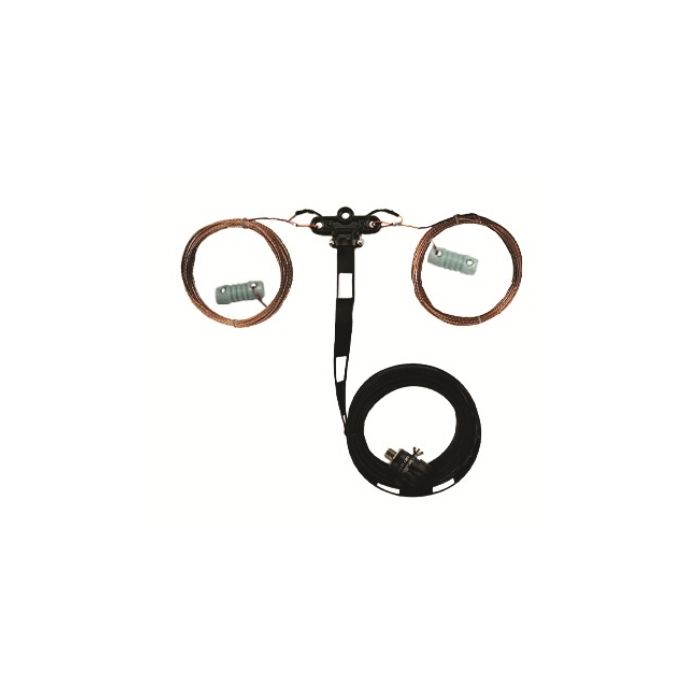

Intellitron WA-1040 G5RV Jr. Dipole Antenna, 40-10M, SO-239 Connector

Intellitron WA-1040 G5RV Jr. Dipole Antenna, 40-10M

Intellitron: Expertly Built, Economically Priced

When space is at a premium but multi-band HF performance is a must, the Intellitron WA-1040 G5RV Jr. Dipole Antenna is the reliable solution for your radio shack. This fully assembled wire antenna is a true workhorse, allowing you to operate on the 40, 20, 15, and 10 Meter bands (and often the WARC bands with a tuner) without the complexity of traps or a massive footprint. It’s the perfect compromise antenna for the HAM who needs excellent coverage in a compact design.

The G5RV Junior design is renowned worldwide for its ability to get you on the air fast and effectively. This model is constructed with the ruggedness needed for years of reliable outdoor service. Whether you're setting up a permanent station or planning a portable operation, the WA-1040's versatile configuration options—as a flat-top Dipole, an Inverted V, or a Sloper—make installation straightforward in almost any location. The carefully matched 450-ohm ladder line section ensures an impedance that is easily handled by any quality antenna tuner, minimizing transmission line loss across all bands and maximizing the RF power that actually radiates. Invest in the Intellitron WA-1040 and turn your limited space into a multi-band DX-chasing station.

Features:

• Versatile Installation: Installs easily as a flat-top Dipole, Inverted V, or Sloper to fit various property layouts.
• Max Legal Power Handling: Built to handle high-power signals up to 1500 Watts PEP, accommodating your amplifier's output.
• Rugged Construction: Features stainless steel hardware and a molded ABS center insulator for maximum weather resistance and longevity.
• Low-Loss Feeder: Utilizes a 17 ft. 450-ohm ladder line matching section for minimal loss and efficient power transfer.

Specifications:

• Frequency Coverage: Operates efficiently across 40m, 20m, 15m, and 10m HF bands (with tuner).
• Overall Wire Length: 52 ft (approximate) length for a compact footprint.
• Antenna Wire: Heavy-duty 14 AWG stranded copper wire for high conductivity and durability.
• Feed Point: Standard waterproof SO-239 connector for direct coax feed to your tuner.

UPC Code: 00810106912295
