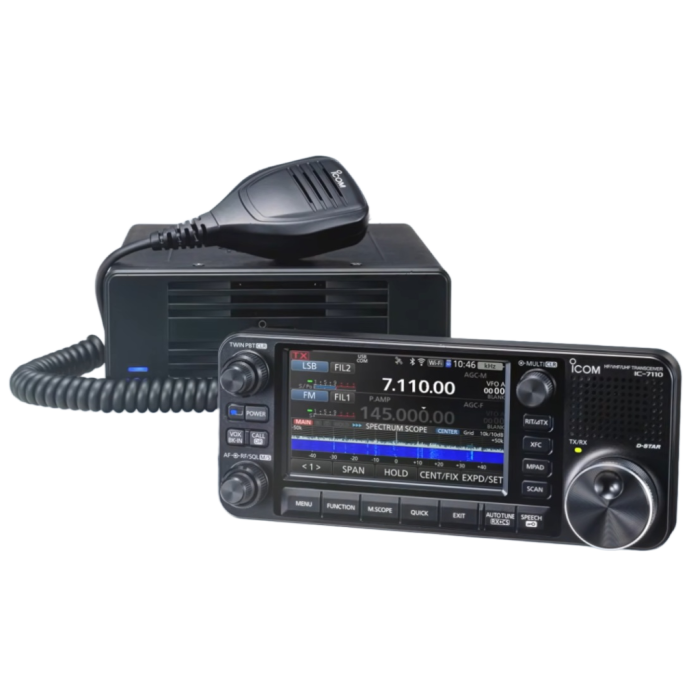

Icom IC-7110 HF 50MHz 144MHz 430MHz 100W All Mode Transceiver

The Icom IC-7110 represents the next evolutionary step in mobile HF/VHF/UHF all-mode transceivers, building upon the technology first previewed under the prototype development code name X-026. Engineered to bridge high-end benchtop performance with accessible field operations, this upcoming radio will undoubtedly combine advanced RF processing with an intuitive interface designed for modern operators.

Highlights

• Comprehensive Mode & Frequency Capabilities: Output reaches 100W on HF/50MHz alongside 50W on 144/430MHz, supporting dualwatch reception for simultaneous HF/VHF, HF/UHF, and DV signals.
• 4.3-Inch Touchscreen Interface: Utilizes an intuitive display architecture modeled on the IC-705, incorporating real-time high-speed waterfall visuals, audio scope functionality, and illuminated hardware buttons.
• Remote Control Unit: A slim, remote head that integrates a front-mounted speaker, microphone and headset ports, a micro-SD card interface, and a USB-C port.
• Integrated Wireless & Data Features: Equipped with built-in Wi-Fi, Bluetooth® (v5.3), GPS, USB Type-C interface, dual antenna ports, CW/RTTY decoding, and D-STAR.

Availability & Release Information

Unveiling happened at the Tokyo Ham Fair on August 29th, but official announcements regarding availability, retail pricing, and shipping schedules have not yet been released.

This radio features a scanning receiver, so we will be unable to offer it for sale until it is FCC certified.  Until then, click the button above to be notified when the product is officially available for sale.

Optional Accessories:

• MBA-19 desktop stand for IC-7110 control head
• MBA-20 dash mount for IC-7110 control head
• BT-002 Bluetooth headset/mic

Specifications:

• 4.3" display with automatic backlight dimming
• HF, 6m, 2m, 70cm
• Modes: SSB, CW, RTTY, AM, FM, DV
• Transmit power: 100W on HF and 6m, 50W on 2m/70cm
  GPS
• 500 regular memory channels, 4 call channels and 2,500 repeater list channels
• Wi-Fi (2.4GHz, 5GHz)
• Bluetooth

Features:

• Voice recording and playback
• Screen capture
• Online software updates
• Dual-watch    
• Realtime spectrum scope
• Audio  scope to check modulation characteristics of the other station's signal, your own mic compresssor effect. It can also be used to check filter width and notch filter characteristics or your CW keying waveform.
• Independent receive circuits for the HF/6M and the 2m/70cm bands.
• CW/RTTY decoder (from the IC-7300Mk2)
• D-STAR features include terminal mode, access point mode, DV repeater monitor function. Send, receive and view images without a computer or smart phone connected.
  Fully compatible with RS-BA1 v2
• Newly designed power amplifier
• Aluminum die-cast frame with active cooling

Control Head:

• 200mm wide x 83.5mm high x 36.2 mm deep
• 1.0 watt forward-facing speaker
• AMPS holes for versatile installation options
• 1/4"x20 (traditional camera tripod mount)
• micro-SD card slot for saving memory data, repeater lists, contact logs, image data and GPS logs
• Ports on control head
  • Mic (RJ-45 jack)
  • Control cable (RJ-45 jack)
  • Headphone (3.5mm)
  • Telegraph key (3.5mm)

Ports on Main Body:

• Antenna ports: 2ea SO-239
• Ethernet: 1ea RJ-45 jack
• USB-C (computer will recognize two serial ports)
• ACC port (DIN)
• External Tuner
• Elec-key
• Control head interface
• DC power
• Ground lug
• External speaker jack: 2ea 3.5mm
• Remote jack
• Data jack

DV-mode App

• RS-MS3A (Android) and RS-MS3i (iOS)
• The RS-MS3 apps are designed to expand the DV mode capability of D-STAR transceivers, like the IC-7110, using Terminal or Access Point mode. These modes allow a D-STAR transceiver to communicate with the D-STAR network over the internet when the transceiver is out of range of a D-STAR repeater.

Imaging App

• ST-4001A (Android) and ST-4001i (iOS)
• The ST-4001 apps allow the user to crop an image on an Android or iOS device and transfer it to the transceiver over Bluetooth or Wi-Fi so it can be shared over D-STAR. Text, like a call sign, can also be added to the image using the app.
